The QFVS14 Dual-Wave Helmet-Mounted Goggle integrates GEN2+ / GEN3 image intensifier technology with advanced thermal imaging, providing a powerful fusion solution for extreme low-light, harsh weather, and highly complex environments. By combining both visual channels, the QFVS14 enhances target detection, heat signature recognition, and overall situational awareness—ensuring reliable performance where traditional night vision alone may fall short.
Designed for seamless helmet mounting and compatible with various weapon systems, the QFVS14 offers flexible deployment across tactical, law-enforcement, and search-and-rescue applications. Its compact structure and intuitive controls make it easy to operate in fast-moving field missions, while fusion imaging ensures clear visibility of both environmental details and thermal contrast.
Whether navigating dense terrain, operating in total darkness, or identifying concealed targets, the QFVS14 delivers robust clarity, real-time fusion imaging, and mission-ready reliability.

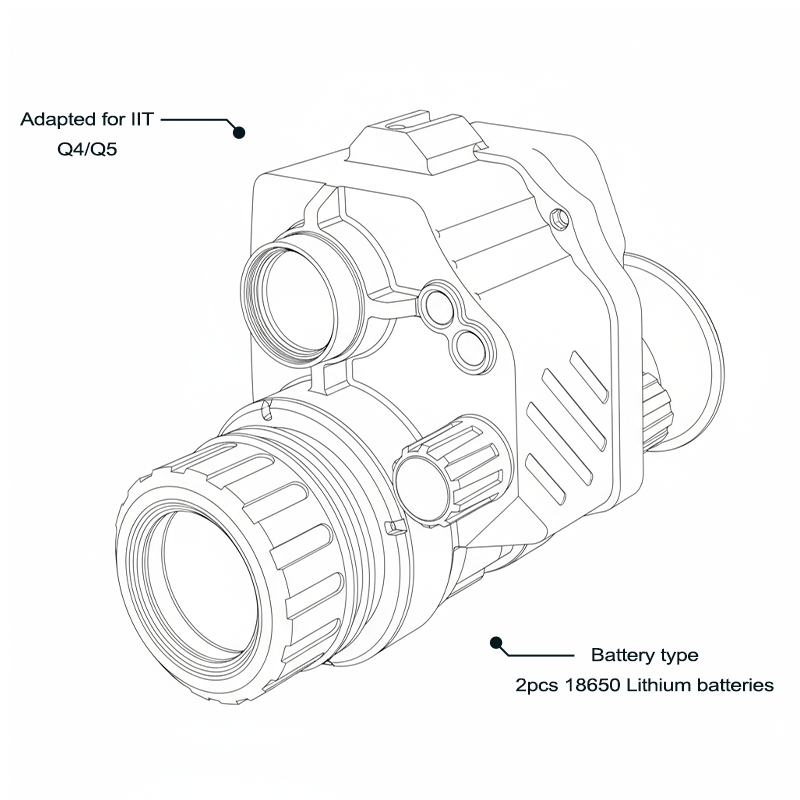

Compatibility: IIT Q4/Q5
| Quantity: | |
|---|---|
Model | QFVS14 |
Magnification | 1.0X±5% |
EPD | 7mm |
Eye Relief | 20mm |
Diopter | -5～+4 |
Weight(without battery) | ≤350g |
Dimension | 124*56*88(L*W*H) |
Power Supply | Battery pack(2pcs 18650 Lithium batteries) |
Mount | Universal mounts and picatinny rail |
Image fusion | ≤1 pixel |
Focus | Manual |
IR Illuminator | 940nm |
IP Rating | IP67 |
Operating Temp | -40℃～+50℃ |
Fusion Duration | ≥8hrs |
Low light mode duration | ≥60hrs |
Polarity | Whit/Black/Redhot; outline/highlight/thermal/breating mode |
E-zoom | Support |
Bearing Indication | Support |
Pitch indication | Support |
Strong light protection function | Support |
Low light specs | |
Focal length | 26mm |
Focus range | 250mm～∞ |
FOV | 40° |
Brightness adjustment | Support |
Thermal Specs | |
Dector | 12μm 640X512 |
Focal length | 18mm |
FOV | 24*18° |
Brightness adjustment | Support |
Contrast Adjustment | Support |
