Technical Data
Detector Specifications: | |
Detector: | 640×512-12um |
Optics Specifications: | |
Aperture: | F/1.0 |
Magnification: | 1× |
FOV(HxV): | 35°×30° |
Recognition Distance: | 275m(Target size:1.7m×0.5m,P(n)=99%) |
Image Mode And Functions: | |
Image Modes: | Highlight/Outline(Adjustable threshold) |
Automatic Control: | ABC,Automatic Shutdown,Auto Standby |
Bluetooth Remote Control: | 2.4G |
Compass: | Electronic Compass(degree) |
Power Supply: | |
Power: | 1×CR123A Battery(Optional Battery Pack) |
Battery Life(22°C): | 3Hours(1×CR123A),10hours(Battery Pack) |
hysical Specifications | |

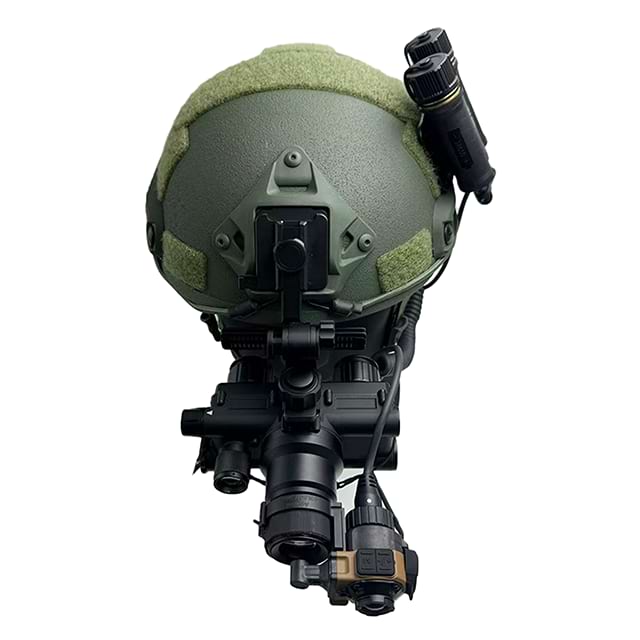

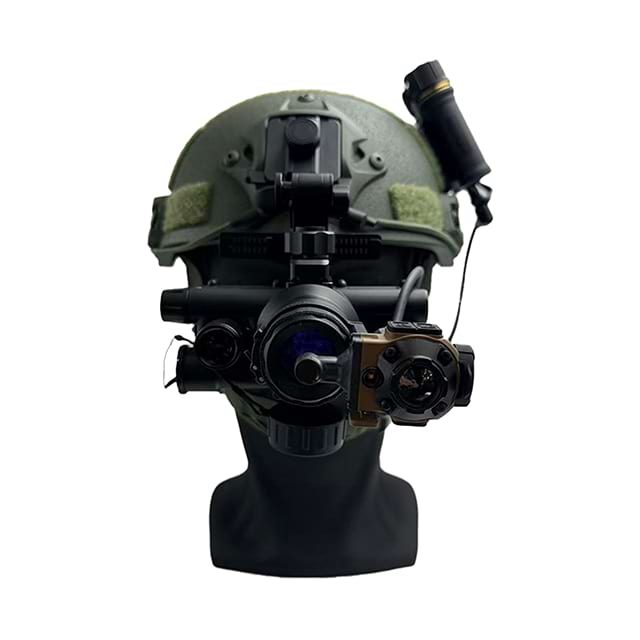

Compatible: | PVS-14(RNVG,DTNVS,1431),L3Harris BNVD(PVS-31A, GPNVG) |
Minimum Fusion Distance: | 10m |
Operating Temperature: | -40℃(-40°F)to+60°C(140°F) |
Weight: | 90g(w/Battery),72g(w/o Battery) |
Dimension: | 86(L)×65(W)×40(H)mm,3.4"(L)×2.6"(W)×1.6"(H) |
Waterproof: | 1.5m for0.5Hour |
Product Feature
640×512 RESOLUTION
INTEGRATED SENSORS ENABLING VARIOUS AUTOMATIC CONTROLS
QUICK-FUSION IMAGING COMPATIBLE WITH CONVENTIONAL NVDS
THE LIGHTEST DEVICE IN THE WORLD WITH ONLY 65G

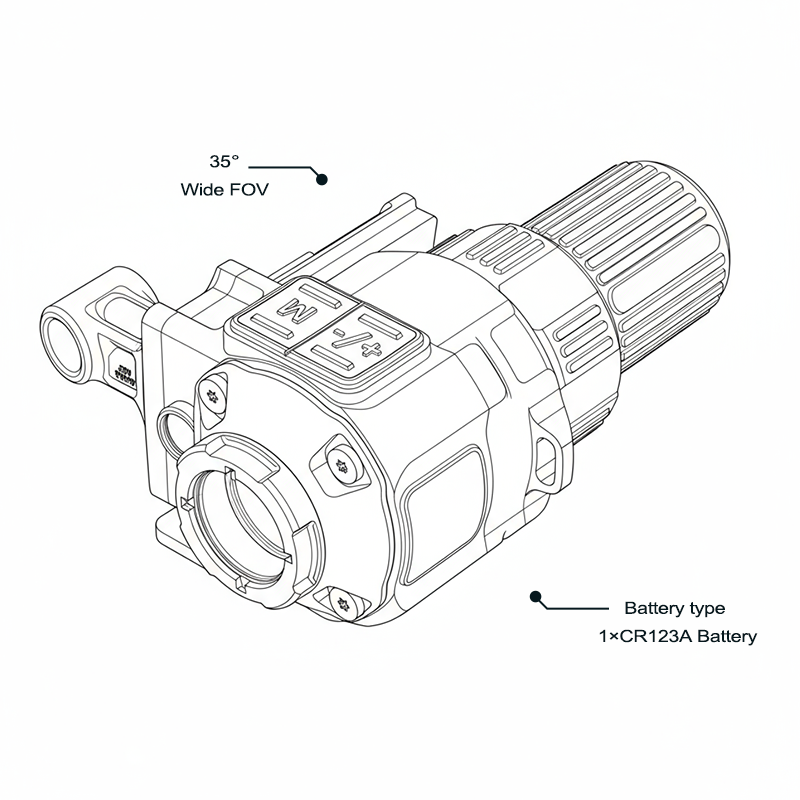

35°WIDE FOV
RICH EXPANSION ACCESSORIES FOR EFFECTIVE INFOR MATION ENHANCEMENT
BLUETOOTH REMOTE CONTROL FOR AST AND EFFICIENT OPERATION
DUAL POWER SEPARATION CABLE COMPATIBLE WITH IMAGE TUBE NIGHT VISION POWER SUPPLY SYSTEMS (Fischer - 3V)
Product Assembly
