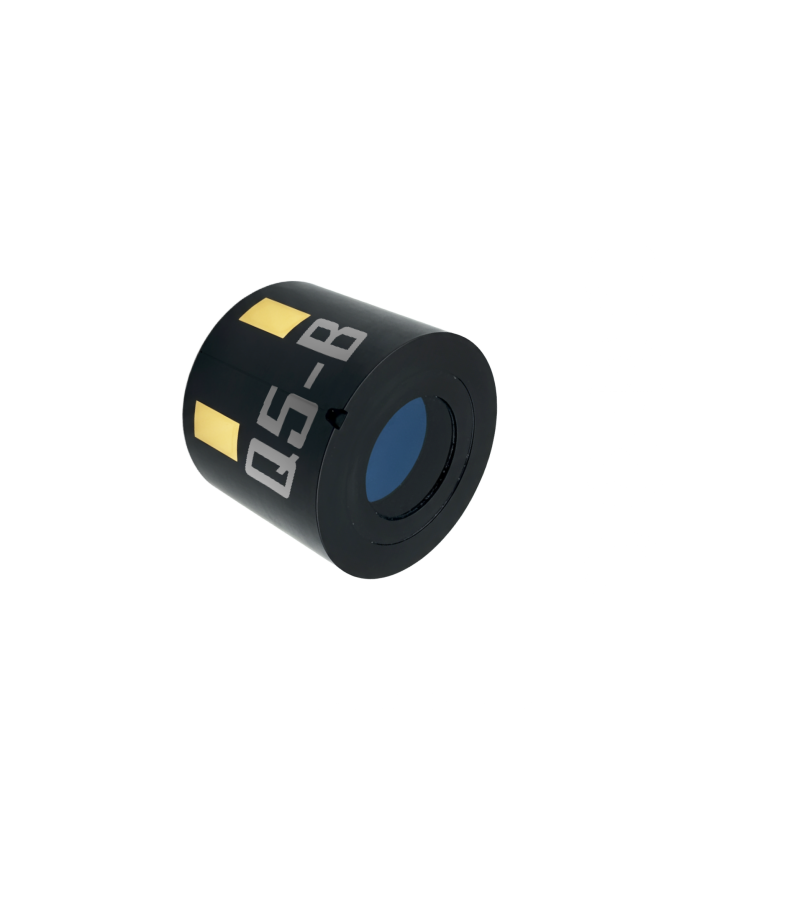

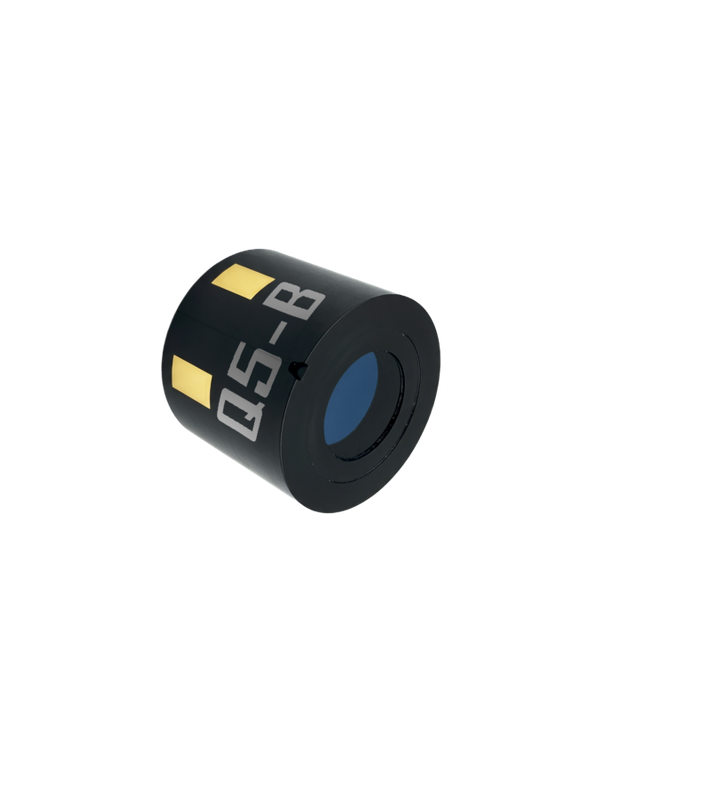

Q5 B FOM2000-2200 Gen3 Tube for PVS14 Night Vision Imaging

Q5-B image intensifier tube integrates a Gen3 GaAs photocathode and 2000+ FOM with ≥64 lp/mm resolution, SNR≥32, low EBI and high gain, plus P43/P45 green/white phosphor options, gated and externally adjustable gain/brightness and flexible interfaces, delivering sharp, low-noise images under ultra-low light and harsh lighting.

Its long life, wide temperature tolerance and optimized cost make Q5-B a high-performance, high value solution for helmet-mounted goggles, weapon sights, long-range surveillance, law-enforcement and border/coastal security systems.

Compatibility:QVS7/QVS31/QVS14/QVS18

Quantity:
Availability:





Inquire

Image Intensifier Tube IIT Night Vision Image Intensifier Tube FOM2000+ Night Vision Tube MX11769 P43/P45 phosphor intensifier Night Vision IIT Night Vision Goggles Gen 3 gen 3 night vision tube night vision products

Technical Information

Description

Options

KEY TECHNICAL DATA

Parameter	B	Unit
FOM	2000
Photocathode useful diameter	≥17.5	mm
Cathode material	Ga As	-
Phosphor powder	P43/P45	-
Photocathode sensitivity	2000	μA/Lm
SNR	32	-
Resolution	64	Lp/mm
Luminance gain	≥10000	Cd/㎡/lx
Maximum output brightness	4-12	Cd/㎡
EBI	≤0.25	μlx

OTHER TECHNICAL DATA
Parameter	B	Unit
Input window	AVG glass	-
Output window	Inverting spherical (SR40)/	-
Input current @3V	≤25	mA
Input voltage	2.2-3.4	V
Weight	≤75	g
Power supply	Gated/External gain adjustment/External brightness adjustment	-

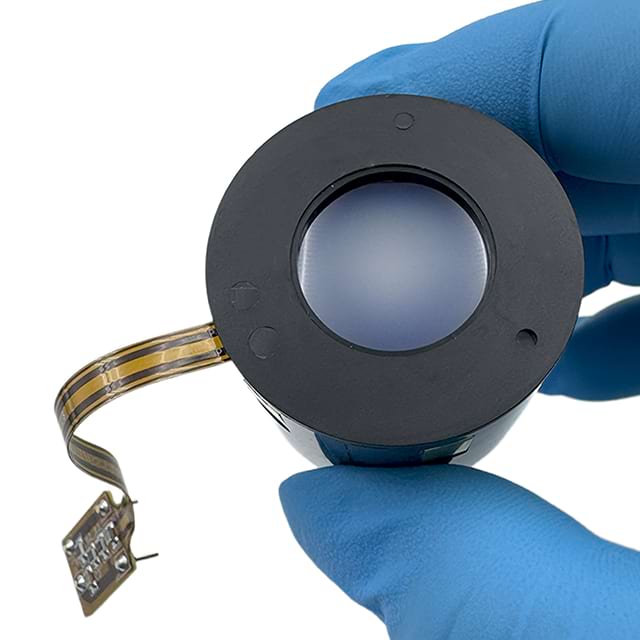

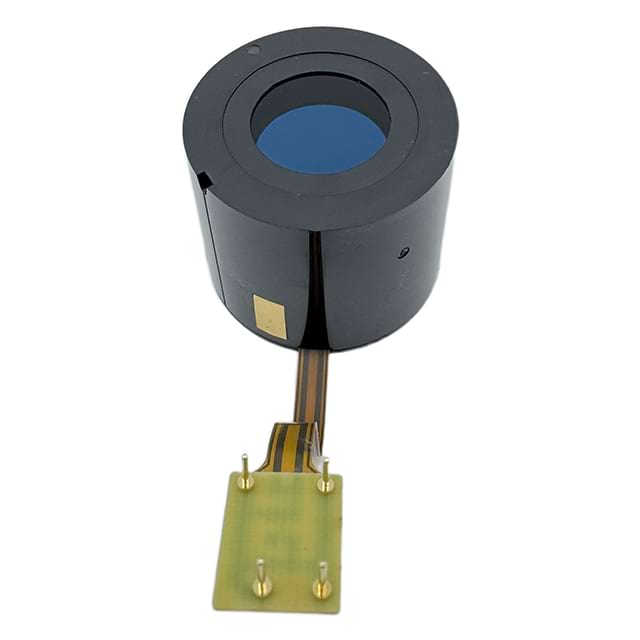

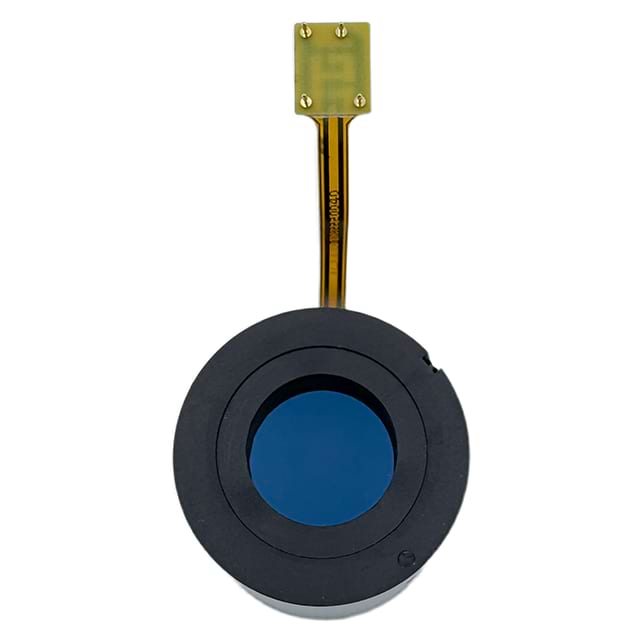

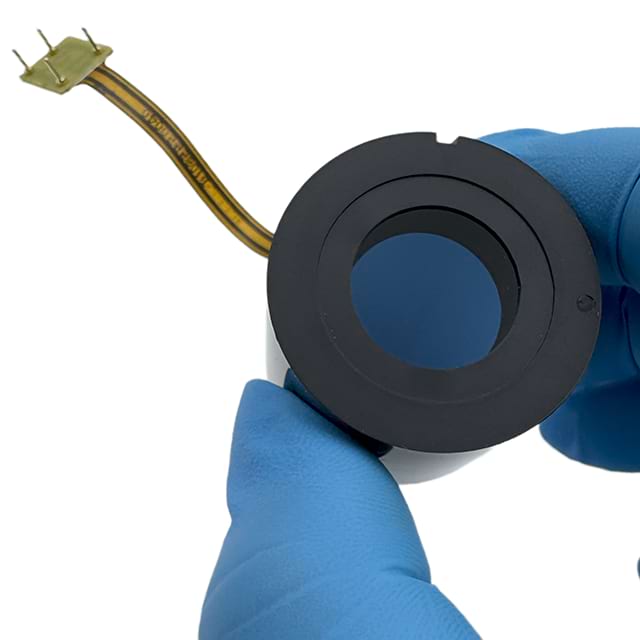

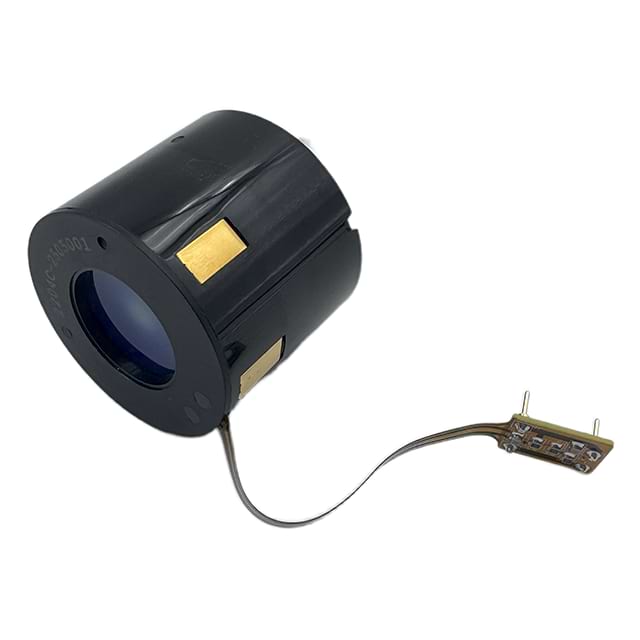

Electrical interface	Touch type / Lead type	-
Operating temperature	-45~+55	℃
Storage temperature	-45~+70	℃

DESCRIPTION

Q5-B image intensifier tube integrates a Gen3 GaAs photocathode and 2000+ FOM with ≥64 lp/mm resolution, SNR≥32, low EBI and high gain, plus P43/P45 green/white phosphor options, gated and externally adjustable gain/brightness and flexible interfaces, delivering sharp, low-noise images under ultra-low light and harsh lighting.

Its long life, wide temperature tolerance and optimized cost make Q5-B a high-performance, high value solution for helmet-mounted goggles, weapon sights, long-range surveillance, law-enforcement and border/coastal security systems.

Compatibility:QVS7/QVS31/QVS14/QVS18

OPTIONS

P43(green phosphor)or P45 (white phosphor)

Product Assembly Demonstration oem iit 1
