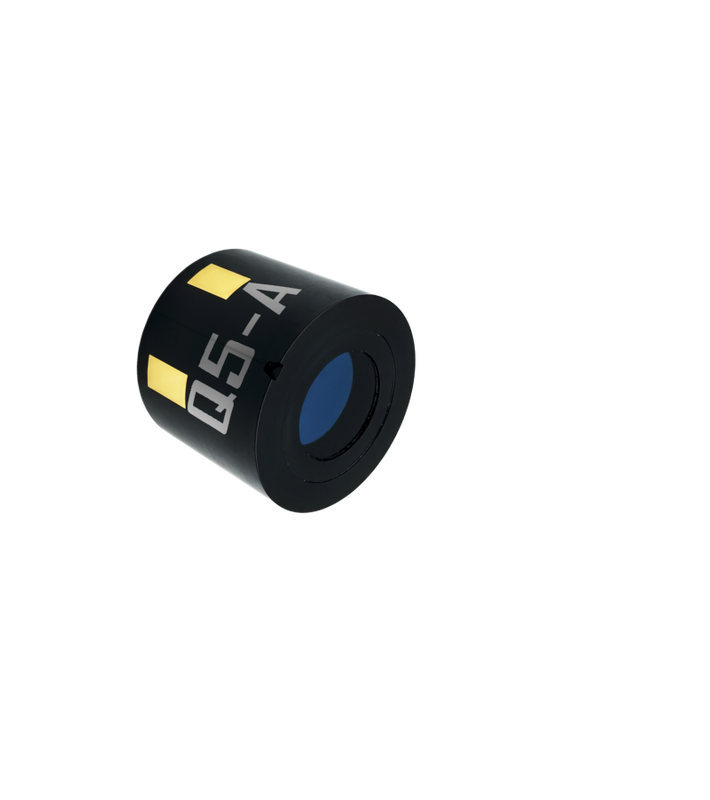

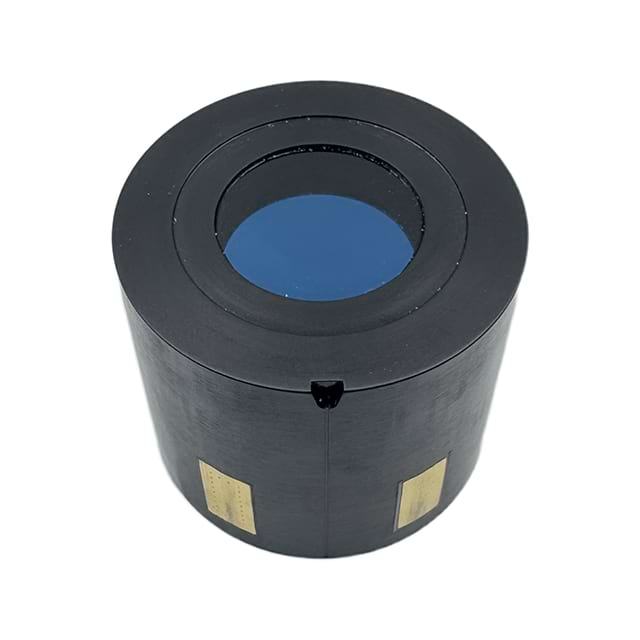

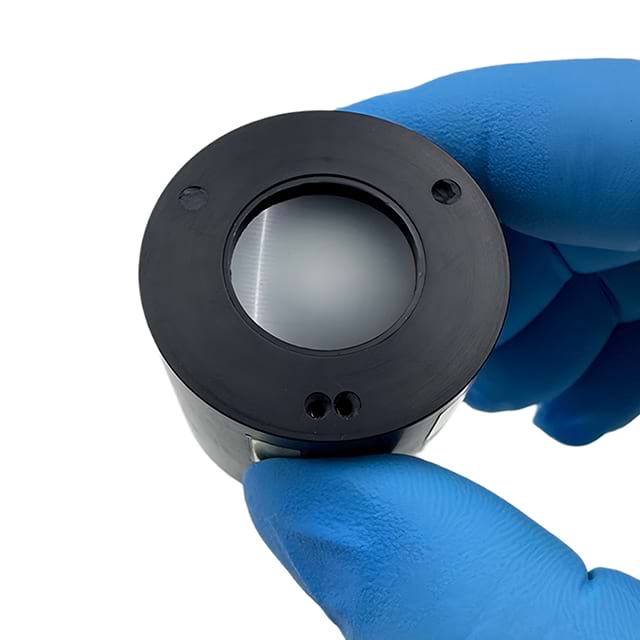

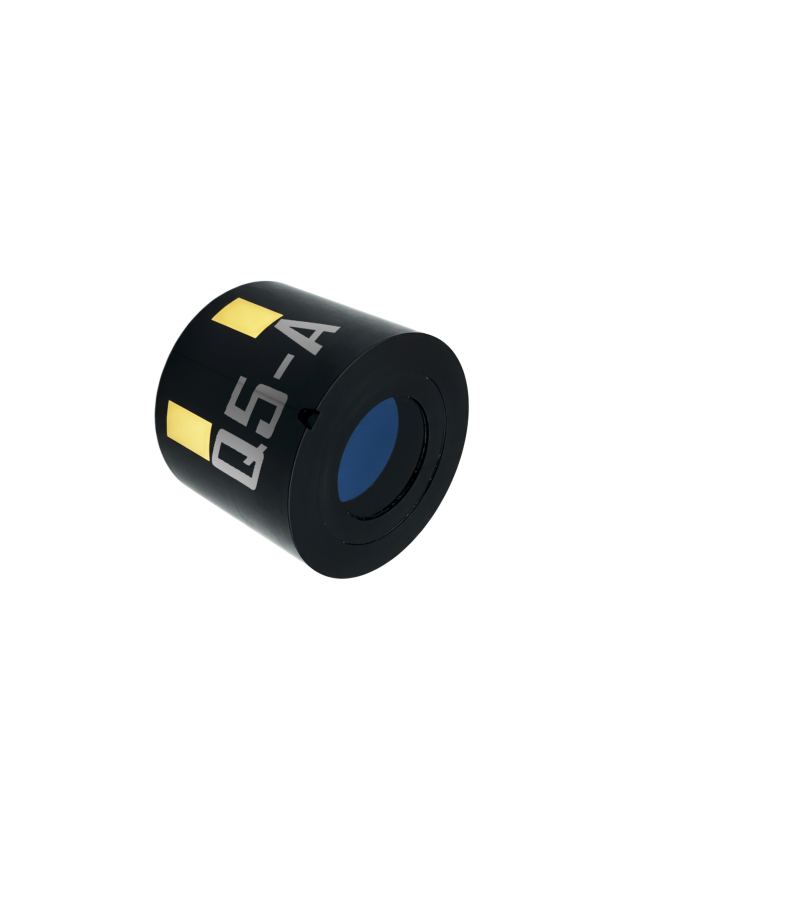

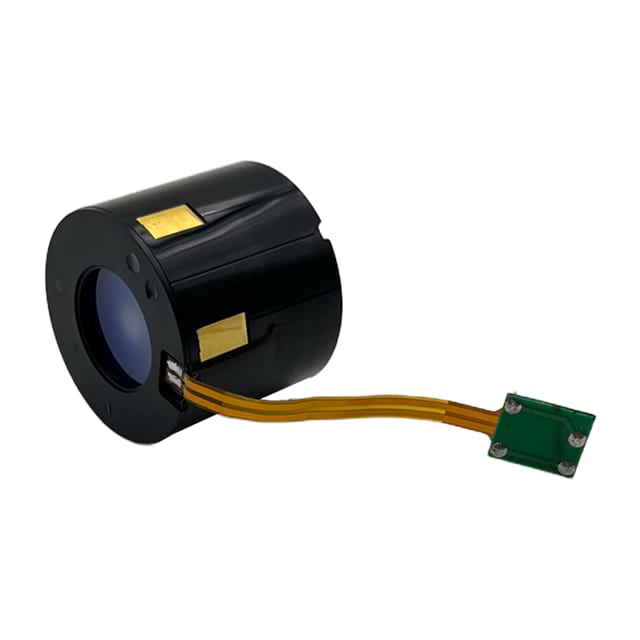

QCNV Q5 A Gen3 FOM2200+ Night Vision Image Intensifier Tube for Tactical Optics

Q5-A image intensifier tube features a Gen3 GaAs photocathode with flagshipF0M≥2200+, ≥68 lp/mm resolution, SNR≥32,low EBl and high gain, plus P43/P45 green/white options, gated and externally adjustable gain/brightness. It delivers outstanding contrast and stability under ultra-low lighit , dynamic lighting and harsh environments.
With rugged design and wide temperature range. Q5-A is engineered for demanding military applicatibns，including helmet-mounted goggles， precision weapon sights, vehicle/naval observation and.long-range reconnaissance/lSR platforms.

Compatibility:QVS7/QVS31/QVS14/QVS18

Quantity:
Availability:





Inquire

Image Intensifier Tube IIT Night Vision Image Intensifier Tube FOM2200+ Night Vision Tube MX10160 gen 3 night vision Gen3 IIT Night Vision IIT p43 p45 intensifier MX10160 night vision intensifier

Technical Information

Description

Options

KEY TECHNICAL DATA

Parameter	A	Unit
FOM	2200
Photocathode useful diameter	≥17.5	mm
Cathode material	Ga As	-
Phosphor powder	P43/P45	-
Photocathode sensitivity	2000	μA/Lm
SNR	32	-
Resolution	68	Lp/mm
Luminance gain	≥10000	Cd/㎡/lx
Maximum output brightness	4-12	Cd/㎡
EBI	≤0.25	μlx

OTHER TECHNICAL DATA
Parameter	A	Unit
Input window	AVG glass	-
Output window	Inverting spherical (SR40)	-
Input current @3V	≤25	mA
Input voltage	2.2-3.4	V
Weight	≤75	g
Power supply	Gated/External gain adjustment/External brightness adjustment	-
Electrical interface	Touch type / Lead type	-
Operating temperature	-45~+55	℃
Storage temperature	-45~+70	℃

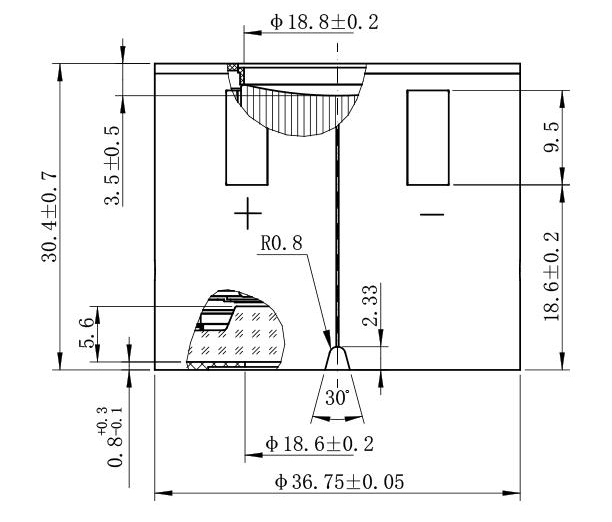

TOUCH TYPE IMAGE INTENSIFIER GEN3

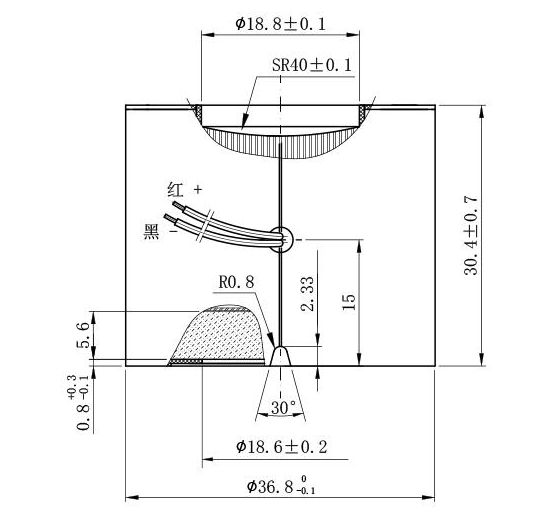

LEAD TYPE IMAGE INTENSIFIER GEN3

DESCRIPTION

Q5-A image intensifier tube features a Gen3 GaAs photocathode with flagshipF0M≥2200+, ≥68 lp/mm resolution, SNR≥32,low EBl and high gain, plus P43/P45 green/white options, gated and externally adjustable gain/brightness. It delivers outstanding contrast and stability under ultra-low lighit , dynamic lighting and harsh environments.

With rugged design and wide temperature range. Q5-A is engineered for demanding military applicatibns，including helmet-mounted goggles， precision weapon sights, vehicle/naval observation and.long-range reconnaissance/lSR platforms.

Compatibility:QVS7/QVS31/QVS14/QVS18

OPTIONS

P43(green phosphor)or P45 (white phosphor)

Product Assembly Demonstration
