TECHNICAL DATA
Num | Name | Parameter |
1 | Overall resolution | less than 1.0mrad (contrast 85%~90%, illumination 1 × 10-1Lx); less than 2.4mrad (contrast 35%~40%, illumination 1 × 10-3Lx). |
2 | Machine weight | less than or equal to 800g; |
3 | Magnification | 1X ± 0.05X |
4 | Field of view | ≥ 100 ° × 35 ° |
5 | Line of sight | when the atmospheric visibility is greater than 10km, the clear starlight (1× 10-3lx ~ 3 × 10-3 lx), and the identification distance of an active person (1.7m×0.5m) is not less than 200m. |
6 | FOM | 2300 or above |
7 | P45 White phosphorus tube or P43 Green phosp- horus tube (optional) | |
Key Technologies
Micro-light four-channel large field of view splicing technology: using the external field of view splicing technology to combine super large.The horizontal field of view is distributed across four channel units in the low-light observation system, ensuring that each unit employs a similar optical mechanism to achieve large- field-of-view stitching imaging. This simplifies the design of each channel unit while maintaining the optical performance of the stitching system, which is equivalent to that of a single-channel unit.
Lightweight design technology: In the whole machine design, small objective lens focusing optical system, lightw- eight overall design technology and aspherical lens system are used, and small imaging devices with obvious advantages in size and weight are selected, so that the whole machine is smaller and lighter.
Project Background
Traditional dual-tube binocular night vision devices have a field of view (FOV) of only 40 °, which is too small and slow to gather information. This is akin to seeing the world through two pipes, whereas the human eye has a horizontal FOV of 188 ° and a vertical FOV of 120 ° . In high-stress combat environments, the scanning mode can be disrupted. Continuous scanning not only increases soldiers' fatigue and stress but also slows down reaction times, making it easier to expose oneself as a target and putting the operation at a disadvantage. To address the issue of reduced peripheral information and decreased situational awareness caused by field-of-view obstruction, research has been conducted on developing large-field-of-view helmet-mounted night vision devices.
The project aims to develop a night vision device that allows for observation of a wide field of view without the need to turn the head. This night vision device is a low- power, miniaturized, ultra-wide-field-of-view, low-light night vision system that uses a Gen3 low-light mage Intensifier Tube as its core component. It operates effectively in low-light conditions without moonlight or starlight and has good detection and camouflage recognition capabilities. It is suitable for naval amphibious assault operations at night, urban street fighting, target search, and observation.
Function And Use

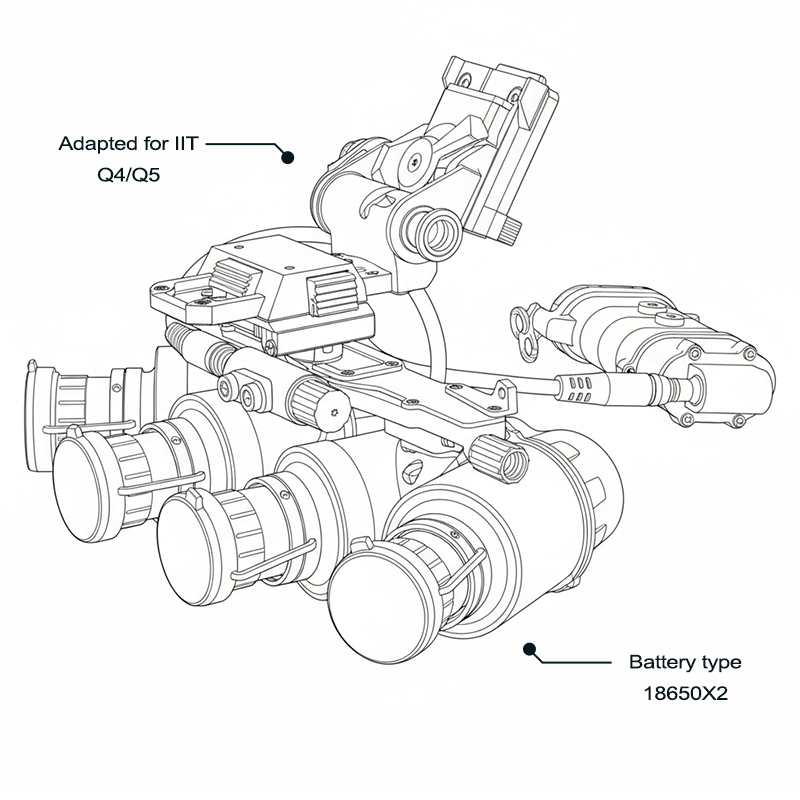

The four-eye panoramic helmet night vision system is a large-field-of-view night image enhancement system moun- ted on helmets. It uses the faint visible light and near- infrared light at night to produce images that can be seen directly, aiding in various night missions. Its main features include four independent image enhancers and four indep- endent lenses arranged in a panoramic direction. The two central lenses are horizontally aligned forward, similar to traditional binocular night vision goggles, providing soldiers with a greater sense of depth.The perception function is provided by the central tube, while the other two tubes are slightly positioned outward from the center, connecting with the central tubes at the eyepiece to expand the peripheral field of view. Soldiers can see the wide-field night vision image formed by the overlapping of the two central tubes and the two outer tubes. The four tubes are installed in the scope body and suspended on the night vision scope's bracket, allowing soldiers to adjust their eye position and interpupillary distance. It can also be removed as a handheld night vision device.
The horizontal field of view of the large-field-of-view night vision scope is more than doubled. Using this scope, soldiers can reduce the need for extensive head movements to scan, preventing the exposure of targets and enabling real-time target acquisition. This enhances situational awar- eness and improves night vision and night combat capabilit- ies, greatly aiding in night assault special operations. When conducting night missions, it is crucial to observe as much as possible, as the more information that can be gathered and processed, the better. Providing more night vision informat- ion enables soldiers to quickly navigate the OODA cycle (Observe, Orient, Decide, Act).
