QCNV QVS3140 Binocular NVG Goggles Night Vision Device

The PVS3140 Binocular Night Vision Goggles are equipped with high-performance GEN2+ image intensifier tubes, significantly enhancing target detection and recognition in complex and low-light environments. Engineered for long-duration missions, the device features a compact and lightweight build of only 500 g, effectively reducing headborne load and improving user comfort during extended operations.

Built for tactical, security, and outdoor applications, the PVS3140 offers stable, clear imaging and dependable performance in demanding conditions. Optional external battery packs are available to extend runtime, allowing users to adapt the configuration to mission requirements.

Compatibility: IIT Q4/Q5

Quantity:
Availability:





Inquire

Night vision goggles NVG Goggles Night Vision Night Vision Goggles Gen 3 Gen 2+ Night Vision Goggles FOV 40 P45/P43 Phosphorus Autogate

Technical Information

Description

Product Assembly

TECHNICAL DATA

Classify	Specifications
Physical parameters	Dimension	185mm（L）65mm（W）35mm（H）
	Weight	620g
	Bracket weight	200g
Optical parameters	Image intensifier	Gen2+/Gen3 green tube as standard, white phosphorus tube optional
	Field of View	40°
	Optical Multiple	1X
	Diopter	-5D -- +3D
	Lens Systems	F1.2
	Recent Focus Distance	0.25m
	Focal length	0.25m
	Signal-to-noise ratio	22-25
	Resolution of the image intensifier	≥64lp/mm
Gas and electricity parameters	Power Supply	CR123 with external battery compartment and power cable as standard.
	Supply Voltage	2.6v-4.2v
	Accessibility time	10000h
	Protection class	IP67
	Standby time	80h
	Strong Light Protection	Supported
	Direction-sensitive standby function	Supported
Product Composition	Binoculars binoculars host 1, special helmet bracket 1 (the product can be connected to the bracket and FAST helmet and tactical bulletproof helmets), 4 rechargeable batteries, an external battery box (battery box with a balanced helmet counterweight function), a special power cord, a three-proof safety box, the daily machine care kit (mirror wipe and a disposable alcohol test strips) 1 set of components.

Description

The PVS3140 Binocular Night Vision Goggles are equipped with high-performance GEN2+ image intensifier tubes, significantly enhancing target detection and recognition in complex and low-light environments. Engineered for long-duration missions, the device features a compact and lightweight build of only 500 g, effectively reducing headborne load and improving user comfort during extended operations.

Built for tactical, security, and outdoor applications, the PVS3140 offers stable, clear imaging and dependable performance in demanding conditions. Optional external battery packs are available to extend runtime, allowing users to adapt the configuration to mission requirements.

Compatibility: IIT Q4/Q5

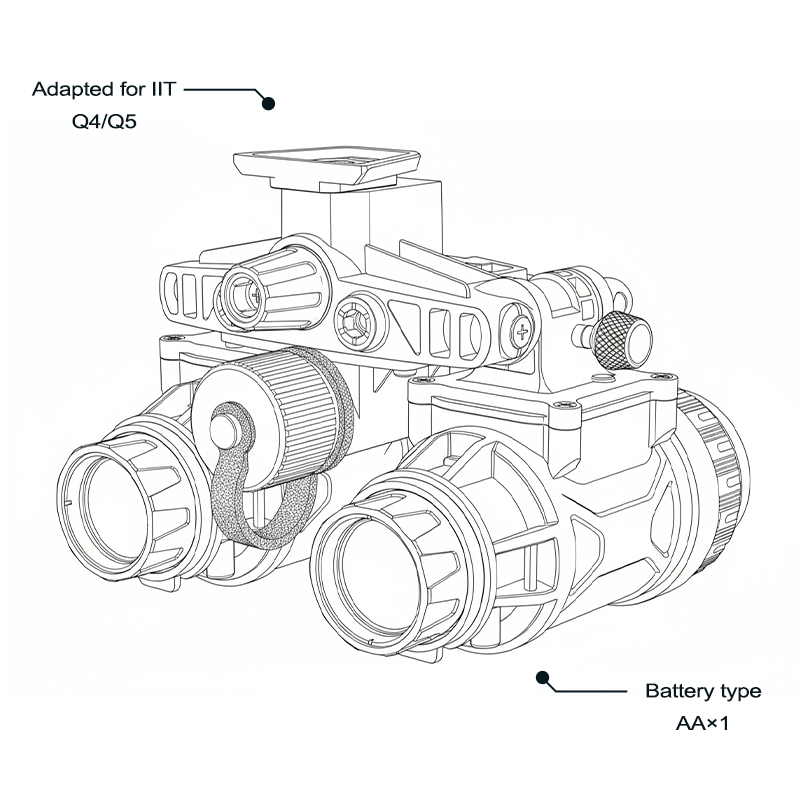

Product Assembly

qvs3140-X
