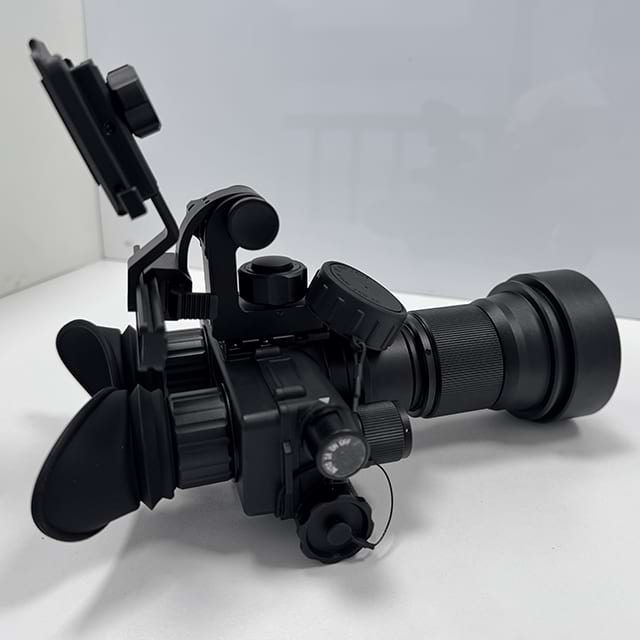

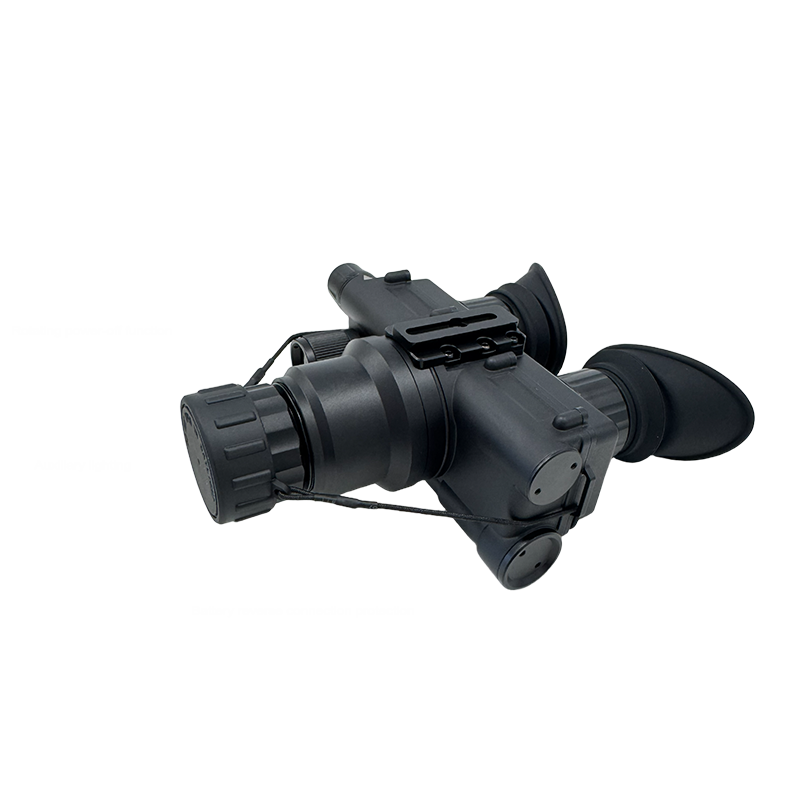

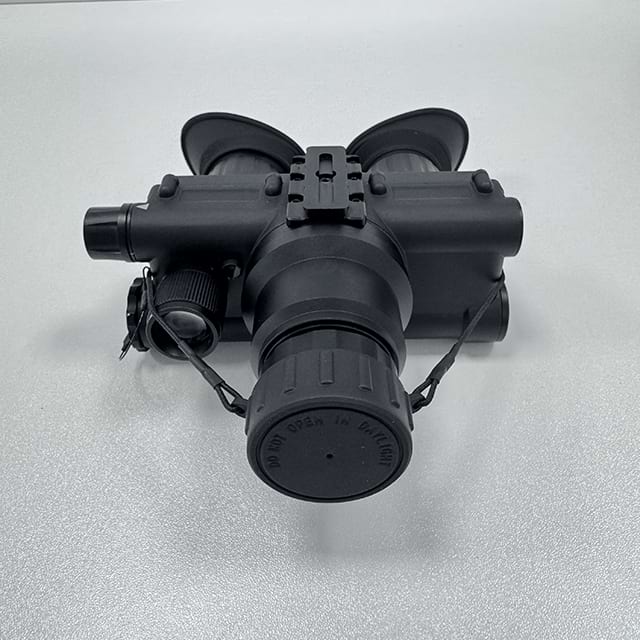

QCNV QVS 7 Binocular NVG Goggles Night Vision Device

FAQ Handling

1. Not bright

a.Please check the battery for reverse b.Check the battery for an electric c.Confirm that the ambient light should not be too strong (required close to the night environment)

2. Images are not clear

a.Check the eyescope and objective lens for dirty b.Open the objective cover (no day) during night, c.Verify that the eyescope is adjusted (refer to the eyescope adjustment operation) d.Verify that the objective focus is adjusted (refer to the objective focus operation) e.Verify whether the infrared auxiliary light source is turned on in an all-black environment.

3. Automatic detection does not work

a.When high light automatic protection does not work in automatic mode, check that the environmental detection site is blocked.b.In the flip state, the night vision system is not automatically turned off or installed on the helmet. When the system can not turn on normally in the normal observation position. Please check whether the fixed connection between the helmet pendant and the product is correct.(Refer to the headset installation operation)

Note

1. Prevent strong light

The night vision system is designed with automatic strong light protection device, automatic protection when encountering strong light; although the strong light protection function can be maximizedEnsure that the product is not damaged in the strong light irradiation, but many repeated strong light irradiation will also accumulate damage, so please do not put the product for a long term orPut it in a strong light environment many times, so as not to cause permanent damage to the product.

2. Moisture proof

This night vision is designed with waterproof function, up to IP67(optional), but the long-term wet environment will also slowly erode the product, cause damage to the product, so please store the product in a dry environment.

3. Use and save

This product is a high-precision photoelectric product, please use strictly follow the instructions, when not in use for a long time, please take out the battery, put the product in a dry, ventilated and cool environment, and pay attention to shading, dust prevention and impact prevention.

4. Do not remove or repair the product during use or when damaged by improper use. Please contact the dealer directly.

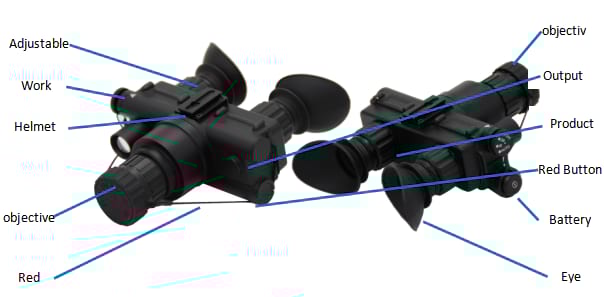

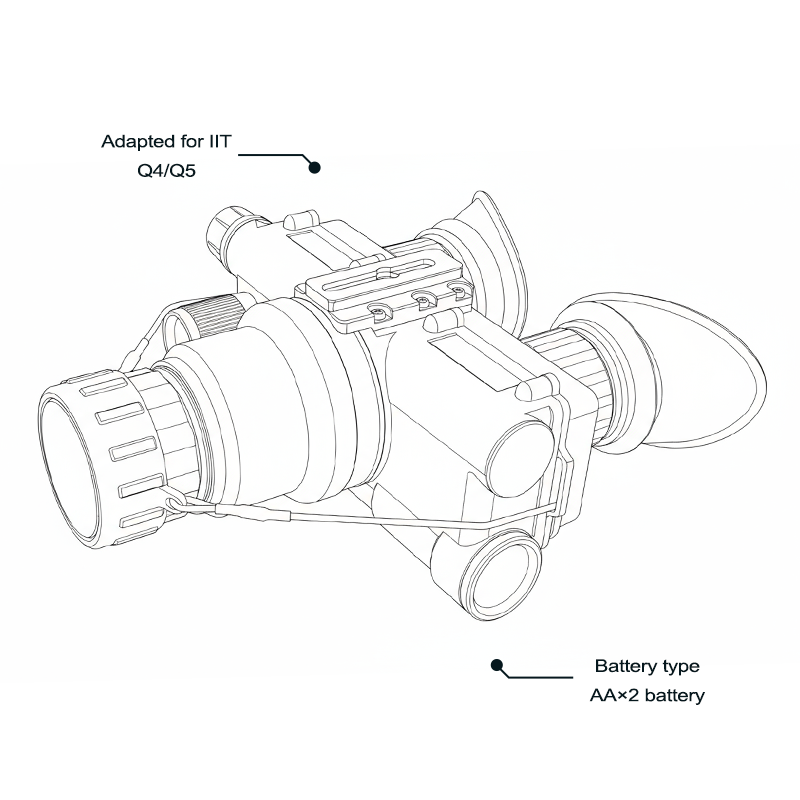

Product Assembly

Use Instructions

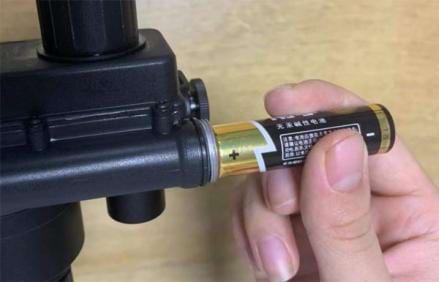

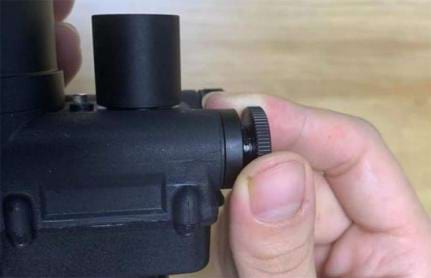

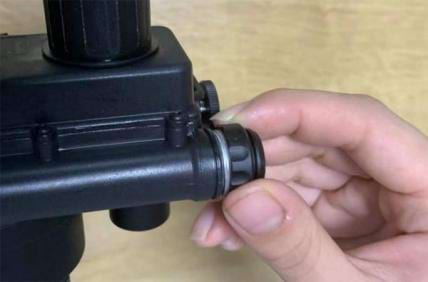

1. Battery installation

• Two AAA batteries will be shown

• Polarity reference battery sign) into night vision

• Instrument battery pack, and align the battery cover on the electricity

• Pool cylinder threads rotate smoothly, twist, and complete electricity

• Pool installation

2. Turn on

• Turn the working switch clockwise

• Turn first gear and the knob indicates to the "ON" position

• Put, the system boot, at this time, the system began to work,

• Like a tube lit up.(The clockwise rotation is as follows: ON/

• IR/AUTO) Open the infrared auxiliary light source in the IR gear;

• The ATUTO gear goes into automatic mode.

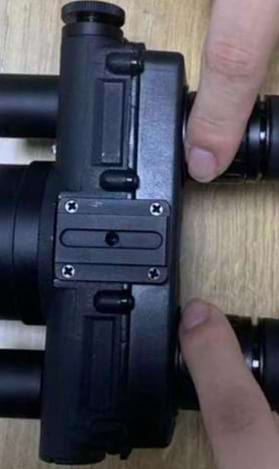

3. Visual adjustment

• Select a target with a moderate ambient brightness,

• Eneyescope without opening the objective cover

• Regulation.As shown, turn clockwise or counterclockwise

• Moving eyehand wheel to coincide with human acuity, when

• The clearest target map can be observed by eyescopy

• When image, the ocular adjustment is completed.Different users

• When using it, you need to see it according to your eyesight

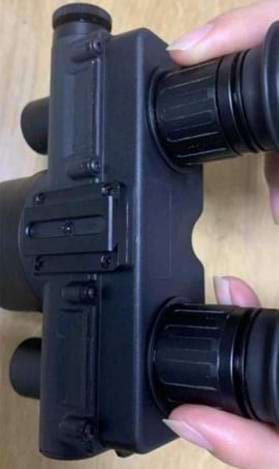

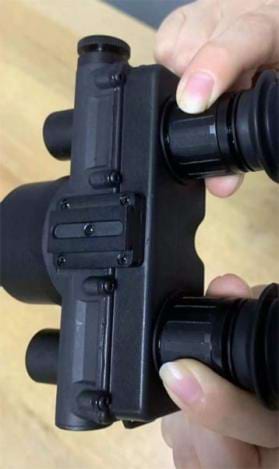

• Reconciliation.Push the eyepiece to the middle or toward the

• Pull pull eyepiece, can change the eyepiece distance.

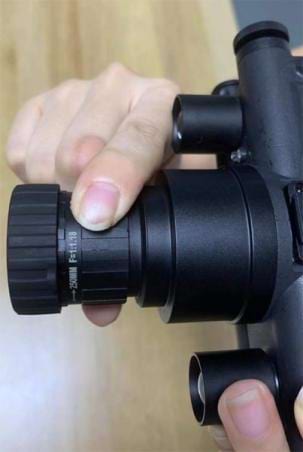

4. Microscopy regulation

The purpose of objective adjustment is to see the scene at different distances, before adjusting the objective, Please adjust the eyescope as described above first. For objective lens adjustment, please choose a darker environment objective. Open the objective cover to the target and turn the objective clockwise or counterclockwise. Tune the hand wheel until the most visible environment image, complete objective adjustment. In the observation. When the targets at different distances, the objective lens needs to be adjusted again according to the previously described method.

5. Work mode

This product working switch has four gears, four modes in addition to shutdown (OFF), and "ON", "IR", "AT" and other three working modes, corresponding to the normal working mode, red External auxiliary opening mode, automatic mode, etc., as shown in Fig.

6. Infrared mode

Turn the work switch clockwise when the ambient illumination is very low (all-dark) for the night vision.As shown in the figure, the system enters the "IR" mode, when the built-in infrared auxiliary lighting is turned on to ensure the normal use in an all-black environment.Note: In infrared mode, similar equipment.

7. Automatic mode

Automatic mode is different from "IR" mode. Automatic mode starts the environmental detection sensor, which can detect environmental illumination in real time and referenceTest the environmental illumination control system work.In extremely low or all-black environments, the system automatically turns on infrared-assisted illumination, whenWhen ambient illumination can meet normal observation, the system automatically closes "IR", When ambient illuminance reaches 40-100Lux, the entire system is fromMove off to protect also light sensitive core components from strong light damage.

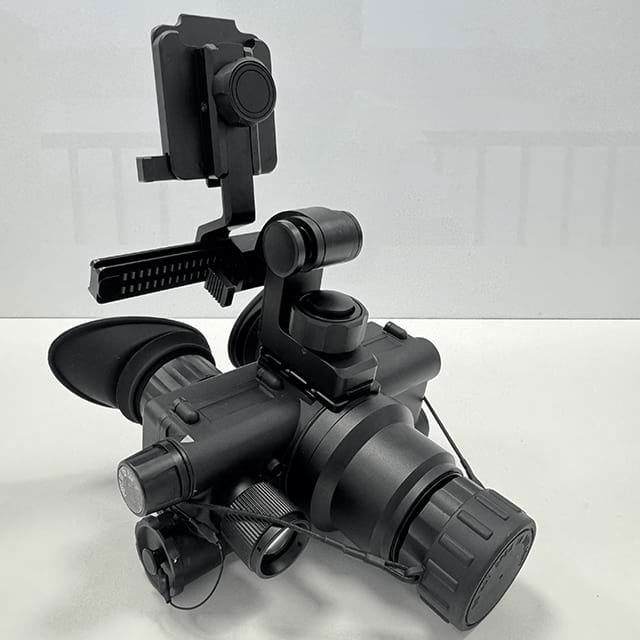

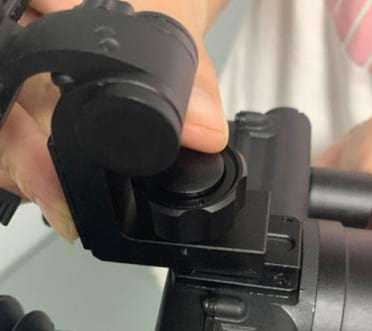

8. Headwear installation

• First lock the device for the helmet mount

• The tight knob rotates counterclockwise to the end, and again

• Mirror the universal card harness for this night vision instrument

• One end targets the equipment card slot for the helmet mount,

• Press the device on the helmet mount vigorously

• Remove the button and take the night vision along the device

• The card slot advances until in the anti-off button

• The heart moves to the middle of the universal harness

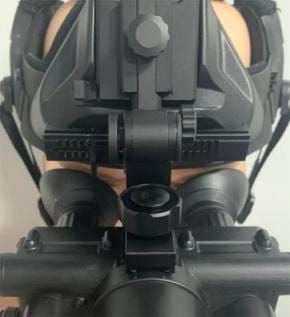

• Release the anti-off button until now and rotate clockwise Equipment lock the knob and lock the equipment.As shown in Fig.

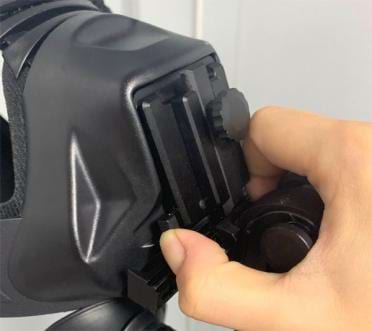

After installing the night vision device, point the mount card buckle of the helmet pendant at the general device card slot of the soft helmet, and then hold down the helmet pendant Latch button while rotating the night vision and the helmet mount counterclockwise when the helmet mount connects the seat to the soft helmet as universal When the device card slot is fully fit, release the lock button of the helmet mount to lock the product assembly on the soft helmet. As shown in Fig.

9. Put on your head and adjust

To with the system, The piece system is designed with the perfect fine-tuning structure to be full The needs of different users.

Up and down adjustment: release the height lock knob of the helmet pendant counter-clockwise and slide down. Move this knob, adjust the product eyepiece to the most suitable observation height, clockwise Turn the height lock knob for the helmet mount to lock the height.Red figure is shown in Fig.

Left and right adjustment: press the finger and hold the left and right adjustment button of the helmet pendant, which can be held at night The vision instrument assembly performs horizontal sliding, when adjusted to the most appropriate position, release the left and right adjustment button of the helmet pendant, the night vision assembly will lock this position, complete the left and right horizontal adjustment.As shown in Figure green.Front and rear adjustment: when the distance between the night vision lens and the human eye, lock the knob of the helmet pendant counterclockwise, then slide the night vision assembly front and back, adjust to the appropriate position, lock the knob, lock the equipment clockwise, complete the front and rear adjustment, as shown in Figure blue.

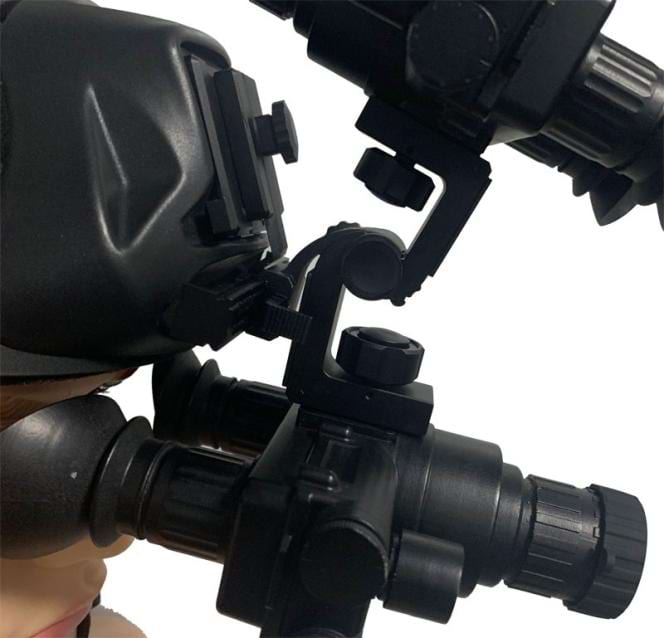

10. Turn your head over

After the product has been worn out, in the actual use process, In, if the night vision instrument is not used temporarily, you can turn the night vision instrument over. Turn over the helmet to neither affect the current line of sight and Easy to easy use.  Hold the helmet for naked eyes.   The flip button of 10 can turn the night vision component up, when.   Release the flip press of the helmet mount at the corner to the 170-degree position.   Knob, the system automatically locks the flip state;   the night vision needs to be lowered.   When component observe, press the flip of the helmet mount first Knob, the night vision component will automatically turn back to the working position and lock the work.   Location.  When flipping the night vision component onto the helmet, the system night.   The viewer will automatically be off, when turning back to the working position, The night vision instrument system will automatically turn on and work normally.FIG.   Perinae.   As shown.

11. objective replacement

This night vision supports the replacement of objective lens with different times to meet the requirements of different observation distances (Note: waterproof energy after replacing the objective. The force will drop).When replacing the objective lens, rotate the objective counter-clockwise first, remove the objective lens installed on the night vision instrument first, and then it will need to be replacedThe objective mirror rotates clockwise and is mounted to the night vision instrument host.

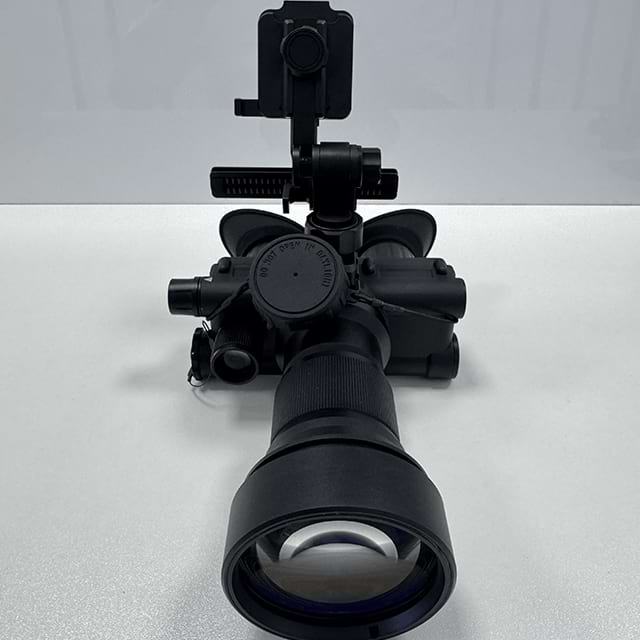

12. Increased mirror installation

This night vision not only supports the replacement of different objective, but also supports the series doubling lens to change the observation rate to meet differentRequirements for the observation of the distance.(Tandem magnification mirror, it has no impact on the waterproof capacity of the night vision instrument product itself) Tandem doubling mirrorBefore, open the original objective cover and twist the doubling mirror of the corresponding caliber directly to the front end of the original objective.This doubling mirror also supports straightWith multi multistage series, the series is the same as the objective lens.This night vision supports triple doubling lens series,The maximum doubling was 6X-fold.
