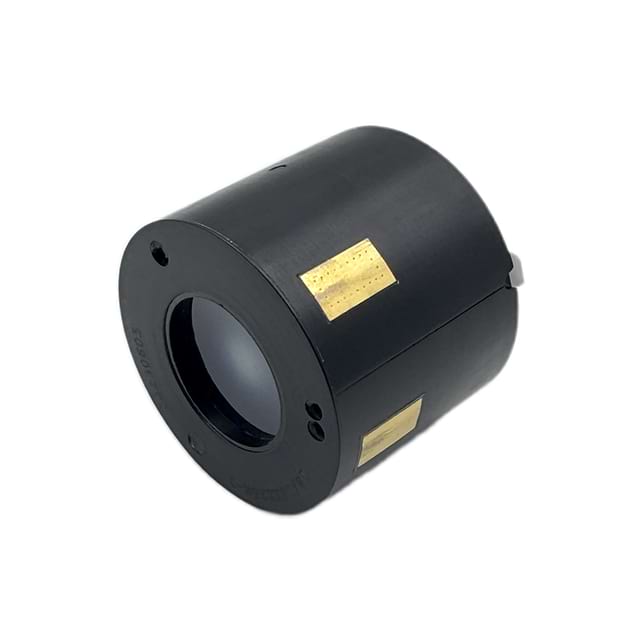

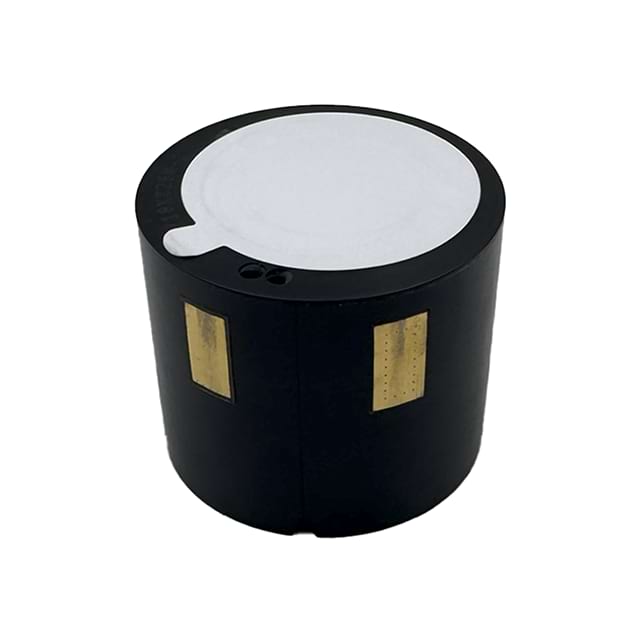

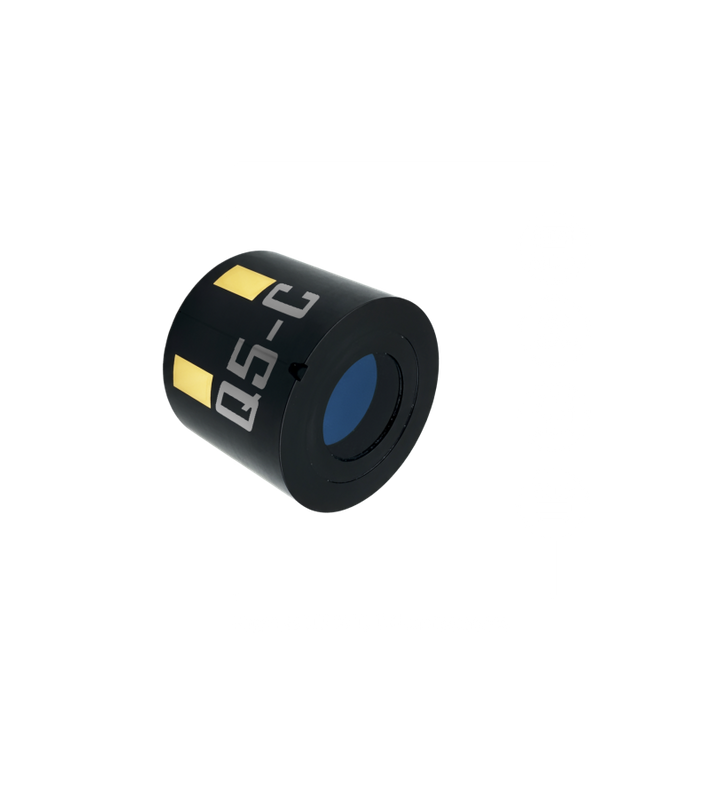

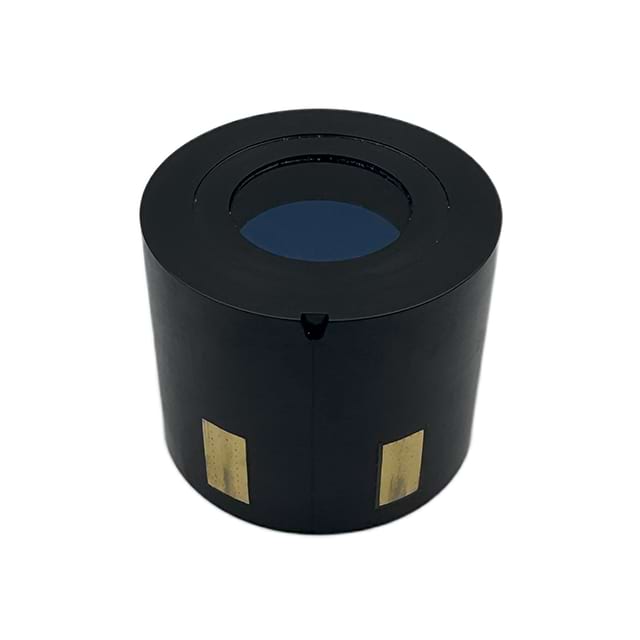

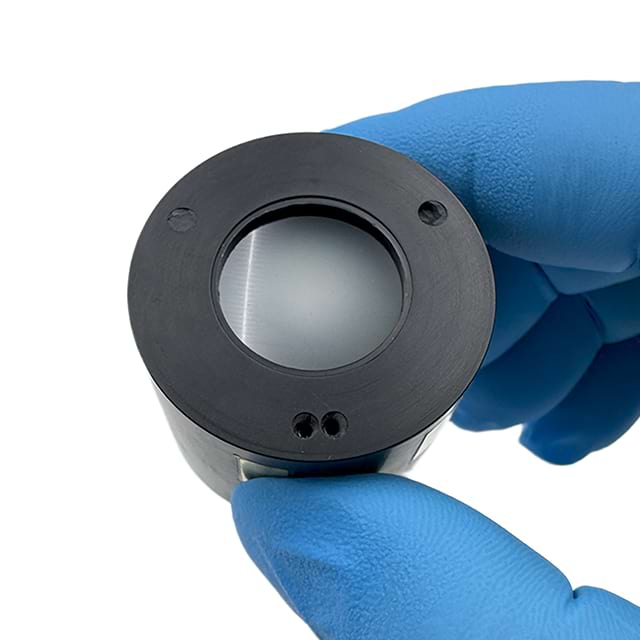

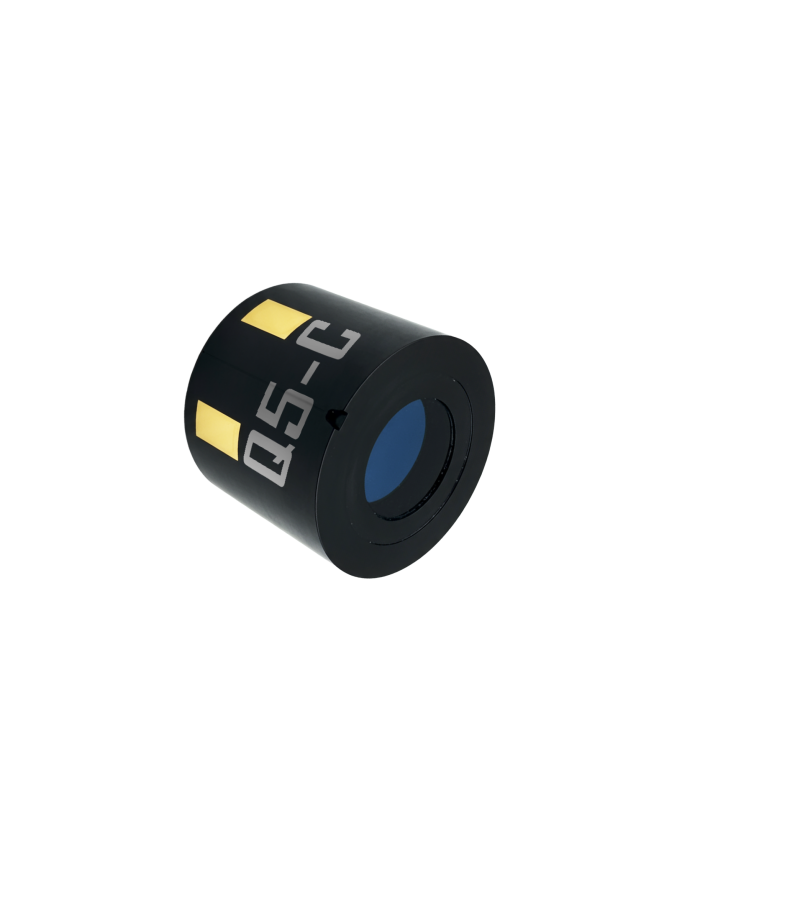

QCNV Q5 C Image Intensifier Tube Gen3 FOM1800-2000 for Night Vision Gear

Q5-C image intensifier tube incorporates a Gen3 GaAs photocathode with FOM≥1800, ≥60 Lp/mm resolution, SNR≥30 and low EBI, plus P43/P45 options and gated/adjustable power solutions, ensuring sharp, low-noise images under ultra-low light and harsh conditions.

Its optimized design reduces system cost while maintaining reliability, delivering high performance with excellent cost-efficiency, ideal for helmet-mounted goggles, weapon sights, surveillance and law-enforcement applications.

Compatibility:QVS7/QVS31/QVS14/QVS1

Quantity:
Availability:





Inquire

Image Intensifier Tube IIT Night Vision Image Intensifier Tube FOM1800+ Night Vision Tube MX10160 FOM 2000

Technical Information

Description

Options

KEY TECHNICAL DATA

Parameter	C	Unit
FOM	1800-2000
Photocathode useful diameter	≥17.5	mm
Cathode material	Ga As	-
Phosphor powder	P43/P45	-
Photocathode sensitivity	1800	μA/Lm
SNR	30	-
Resolution	60	Lp/mm
Luminance gain	≥10000	Cd/㎡/lx
Maximum output brightness	4-12	Cd/㎡
EBI	≤0.25	μlx

OTHER TECHNICAL DATA
Parameter	C	Unit
Input window	AVG glass	-
Output window	Inverting spherical (SR40)	-
Input current @3V	≤25	mA
Input voltage	2.2-3.4	V
Weight	≤75	g
Power supply	Gated/External gain adjustment/External brightness adjustment	-
Electrical interface	Touch type / Lead type	-
Operating temperature	-45~+55	℃
Storage temperature	-45~+70	℃

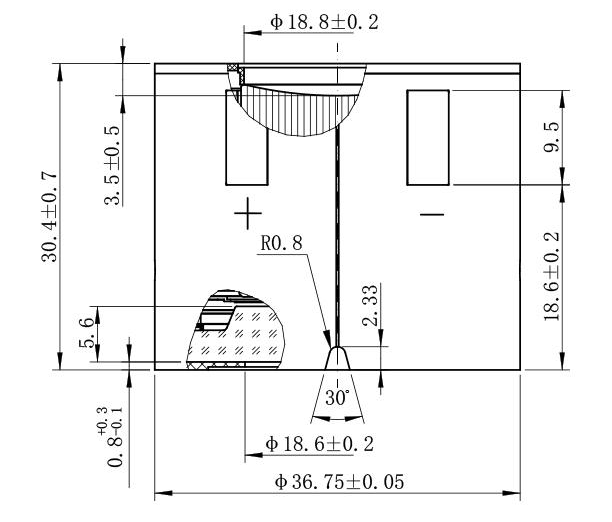

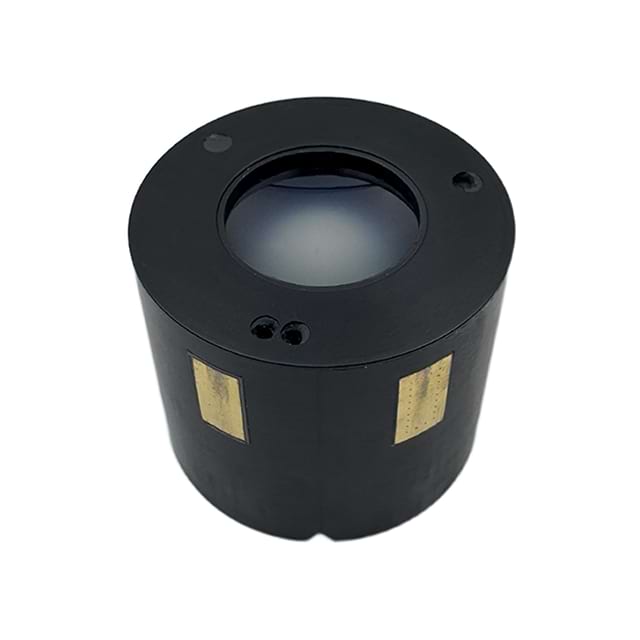

TOUCH TYPE IMAGE INTENSIFIER GEN3

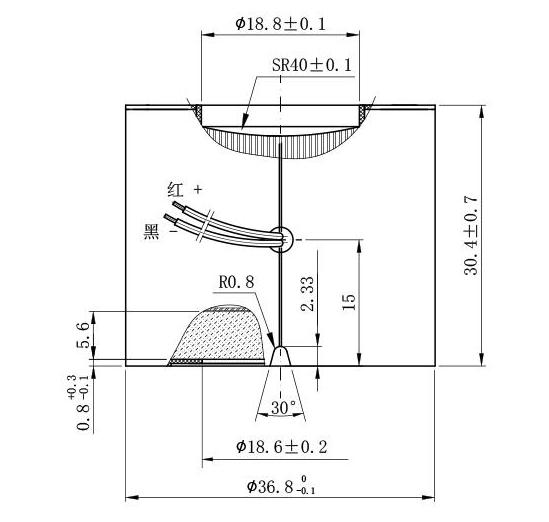

LEAD TYPE IMAGE INTENSIFIER GEN3

DESCRIPTION

Q5-C image intensifier tube incorporates a Gen3 GaAs photocathode with FOM≥1800, ≥60 Lp/mm resolution, SNR≥30 and low EBI, plus P43/P45 options and gated/adjustable power solutions, ensuring sharp, low-noise images under ultra-low light and harsh conditions.

Its optimized design reduces system cost while maintaining reliability, delivering high performance with excellent cost-efficiency, ideal for helmet-mounted goggles, weapon sights, surveillance and law-enforcement applications.

Compatibility:QVS7/QVS31/QVS14/QVS1

OPTIONS

P43(green phosphor)or P45 (white phosphor)

Product Assembly Demonstration oem iit 1
