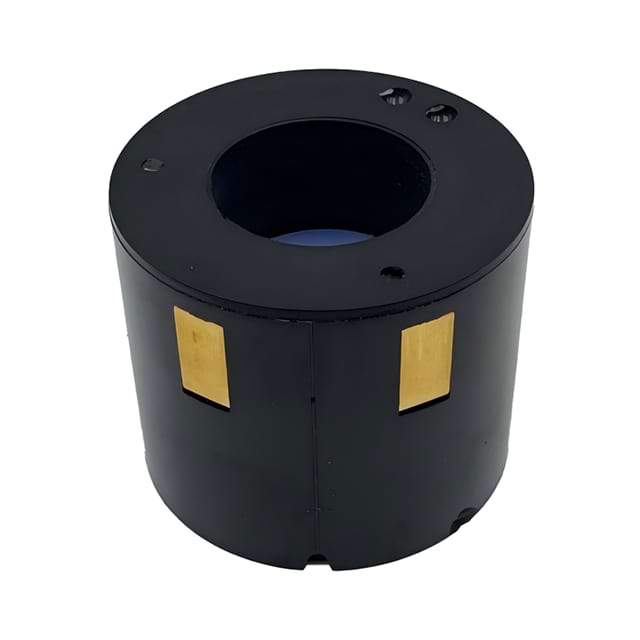

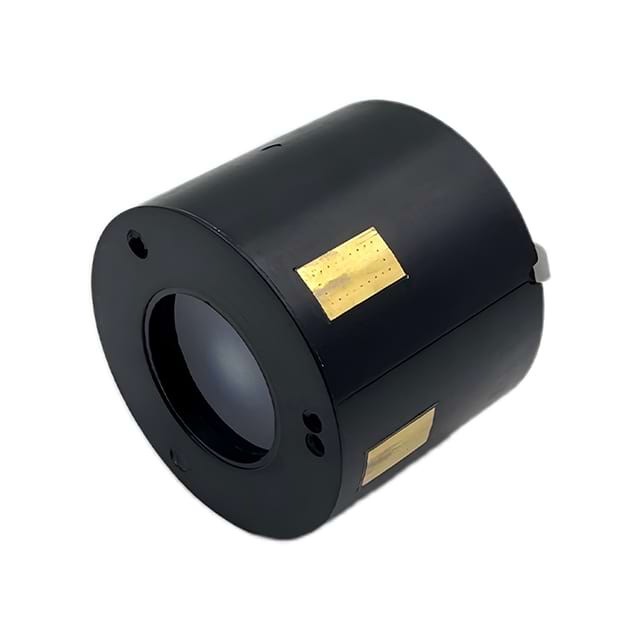

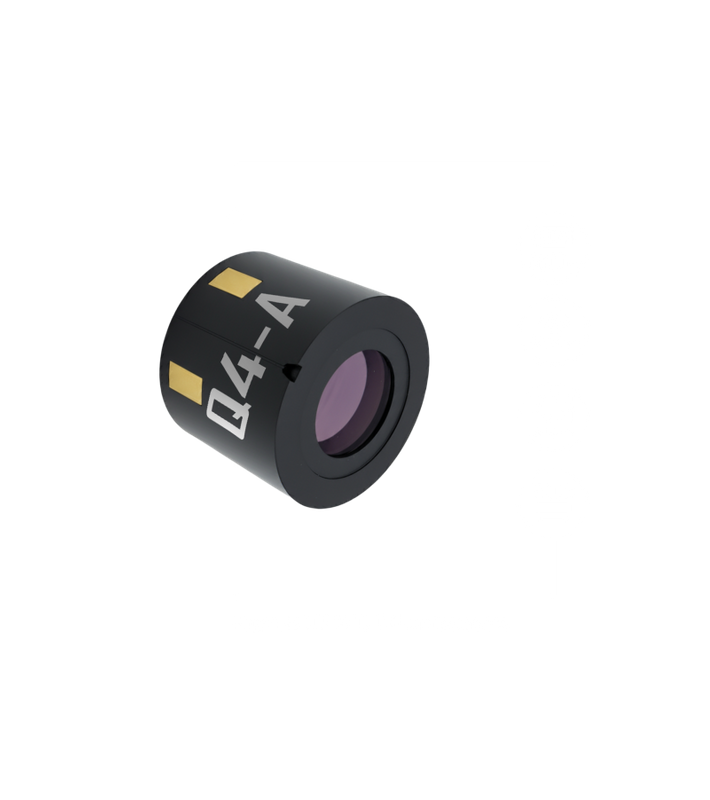

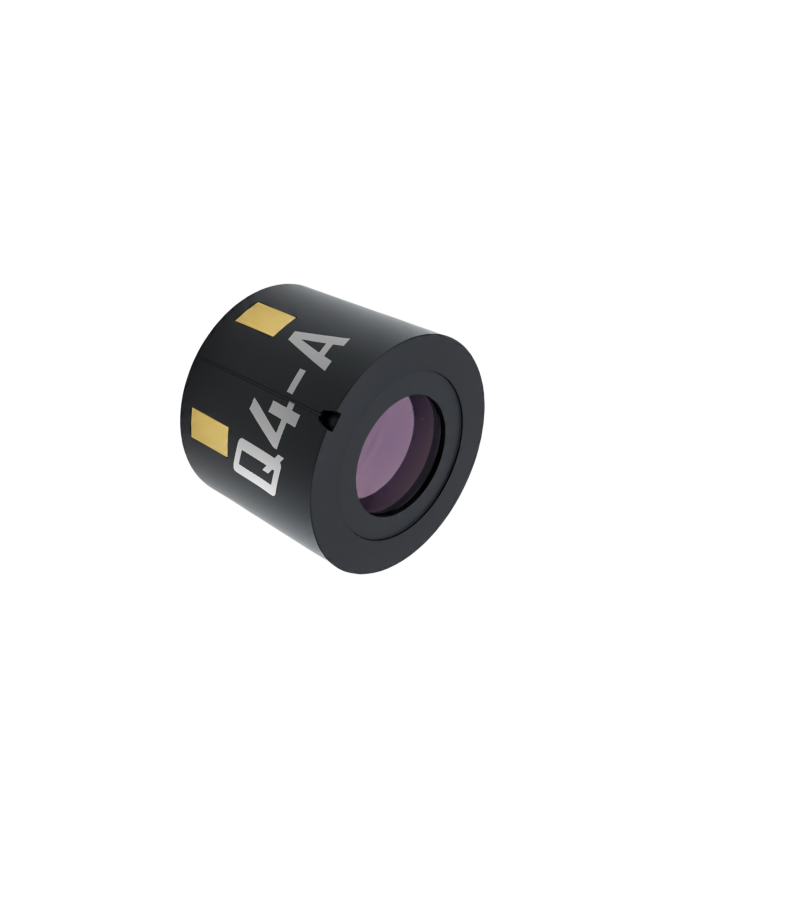

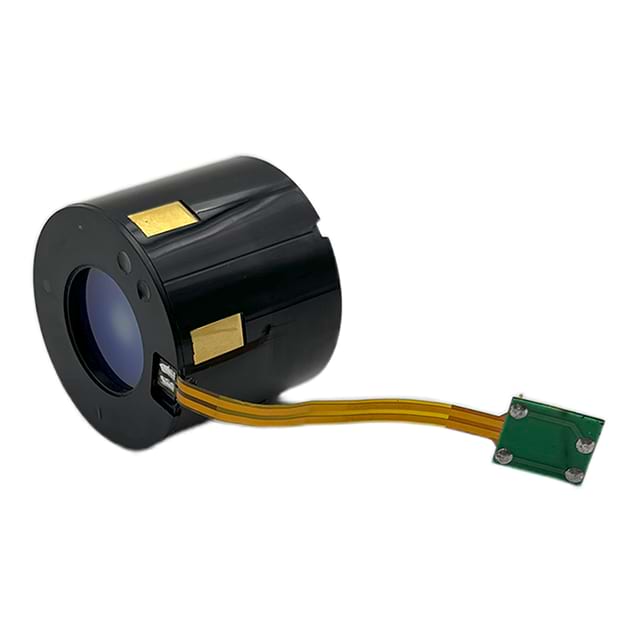

Q4 A Gen2+ Image Intensifier Tube FOM1600-1800 for Night Vision Devices

Q4-A adopts Gen2+ with FOM≥1600, ≥64 Lp/mm and ≥25 SNR, P43/P45 options and flexible interfaces for sharp low-light imaging; its superior price-performance makes it the optimal economical choice.

The Q4-A offers a far more cost-effective solution than comparable imported tubes for military and police, security surveillance, outdoor equipment, and OEM manufacturers, making it the rational first-choice configuration for today’s mid- to high-end low-light night vision systems.

Compatibility:QVS7/QVS31/QVS14/QVS18

Quantity:
Availability:





Inquire

Image Intensifier Tube IIT Night Vision Image Intensifier Tube FOM1600+ Night Vision Tube MX11769 MX10130 MX10160 FOM1800+ Night Vision Tube P43/P45 Autogate Manual Gain

Technical Information

Description

Options

KEY TECHNICAL DATA

Parameter	A	Unit
FOM	1600-1800	-
Photocathode useful diameter	≥17.5	mm
Cathode material	Na2KSB(Cs)	-
Phosphor powder	P43/P45	-
Photocathode sensitivity	750	μA/Lm
SNR	≥25	-
Resolution	≥64	Lp/mm
Luminance gain	≥8000	Cd/㎡/lx
Maximum output brightness	4-8	Cd/㎡
EBI	≤0.25	μlx

OTHER TECHNICAL DATA
Input window	AVG glass	-
Output window	Inverting spherical (SR40)	-
Input current @3V	≤20	mA
Input voltage	2.2-3.4	V
Weight	≤75	g
Power supply	Gated/External gain adjustment/External brightness adjustment	-

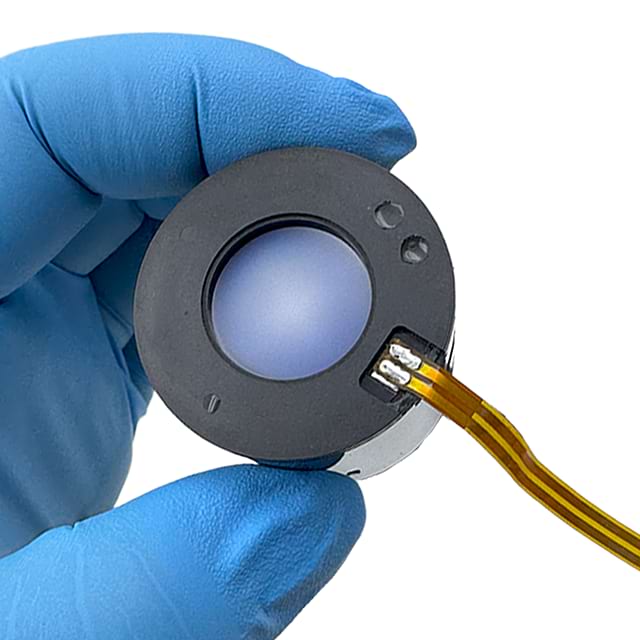

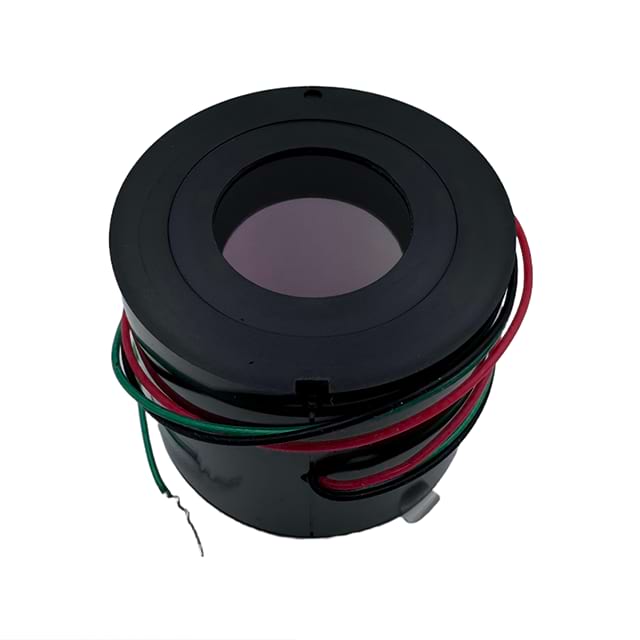

Electrical interface	Touch type / Lead type	-
Operating temperature	-45~+55	℃
Storage temperature	-45~+70	℃

DESCRIPTION

Q4-A adopts Gen2+ with FOM≥1600, ≥64 Lp/mm and ≥25 SNR, P43/P45 options and flexible interfaces for sharp low-light imaging; its superior price-performance makes it the optimal economical choice.

The Q4-A offers a far more cost-effective solution than comparable imported tubes for military and police, security surveillance, outdoor equipment, and OEM manufacturers, making it the rational first-choice configuration for today’s mid- to high-end low-light night vision systems.

Compatibility:QVS7/QVS31/QVS14/QVS18

OPTIONS

P43(green phosphor)or P45 (white phosphor)

Product Assembly Demonstration

oem iit 2
