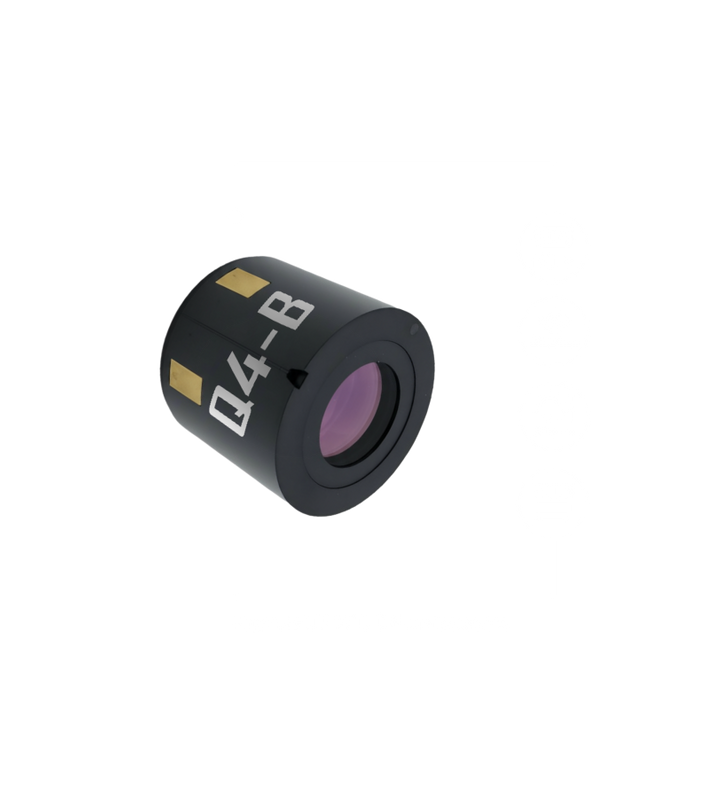

QCNV Q4 B IIT Gen2+ FOM1400-1600 Tube for PVS14/PVS31/GPNVG18 Night Vision Goggles

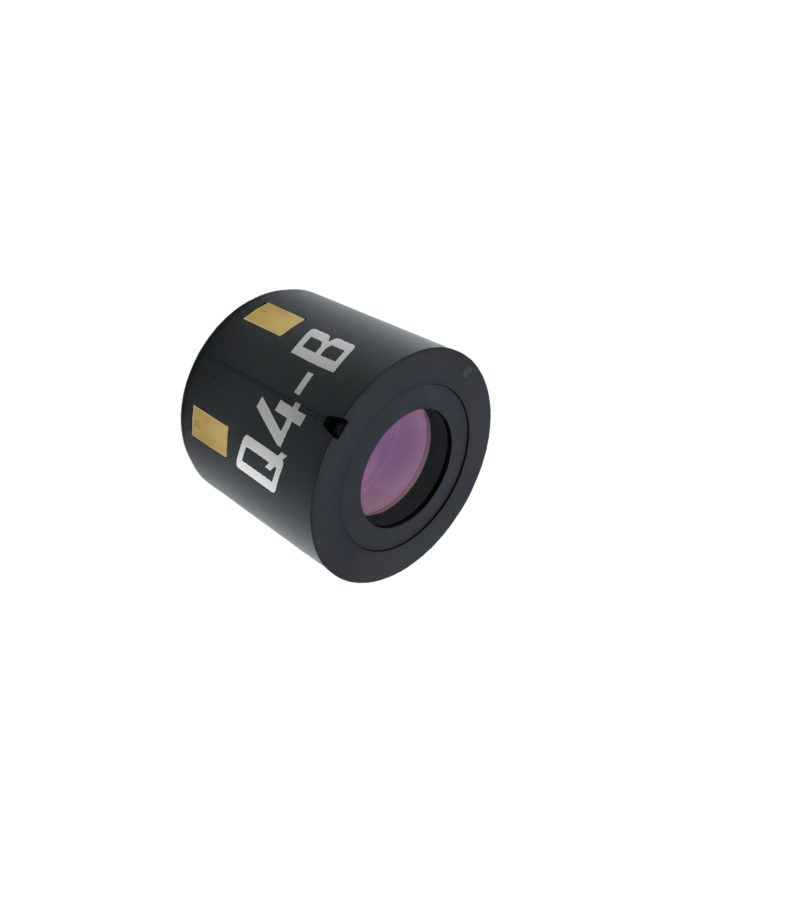

Q4-B image intensifier tube adopts Gen2+ technology with FOM≥1400, high resolution and low noise, offering clear green/white images (P43/P45) and flexible interfaces for reliable low-light performance. Its optimized design, long lifetime and controlled cost deliver outstanding price-performance, making Q4-B the preferred choice where both efficiency and economy matter.

The Q4-B offers a far more cost-effective solution than comparable imported tubes for military and police, security surveillance, outdoor equipment, and OEM manufacturers, making it the rational first-choice configuration for today’s mid- to high-end low-light night vision systems.

Compatibility:QVS7/QVS31/QVS14/QVS18

Quantity:
Availability:





Inquire

Image Intensifier Tube IIT Night Vision Image Intensifier Tube FOM1400+ Night Vision Tube MX11769 GEN2+ P43/P45 Autogate Manual Gain PVS14 PVS31 GPNVG18 Goggles Night Vision Device

Technical Information

Description

Options

KEY TECHNICAL DATA

Parameter	B	Unit
FOM	1400-1600	-
Photocathode useful diameter	≥17.5	mm
Cathode material	Na2KSB(Cs)	-
Phosphor powder	P43/P45	-
Photocathode sensitivity	650	μA/Lm
SNR	≥22	-
Resolution	≥64	Lp/mm
Luminance gain	≥8000	Cd/㎡/lx
Maximum output brightness	4-8	Cd/㎡
EBI	≤0.25	μlx
Input current @3V	≤20	mA
Input voltage	2.2-3.4	V
Weight	≤75	g
Power supply	Non-gated/Gated/External gain adjustment/External brightness adjustment	-
Electrical interface	Touch type / Lead type	-
Operating temperature	-45~+55	℃
Storage temperature	-45~+70	℃

OTHER TECHNICAL DATA
Input window	AVG glass	-
Output window	Inverting spherical (SR40)	-
Input current @3V	≤20	mA
Input voltage	2.2-3.4	V
Weight	≤75	g
Power supply	Non-gated/Gated/External gain adjustment/External brightness adjustment	-
Electrical interface	Touch type / Lead type	-
Operating temperature	-45~+55	℃
Storage temperature	-45~+70	℃

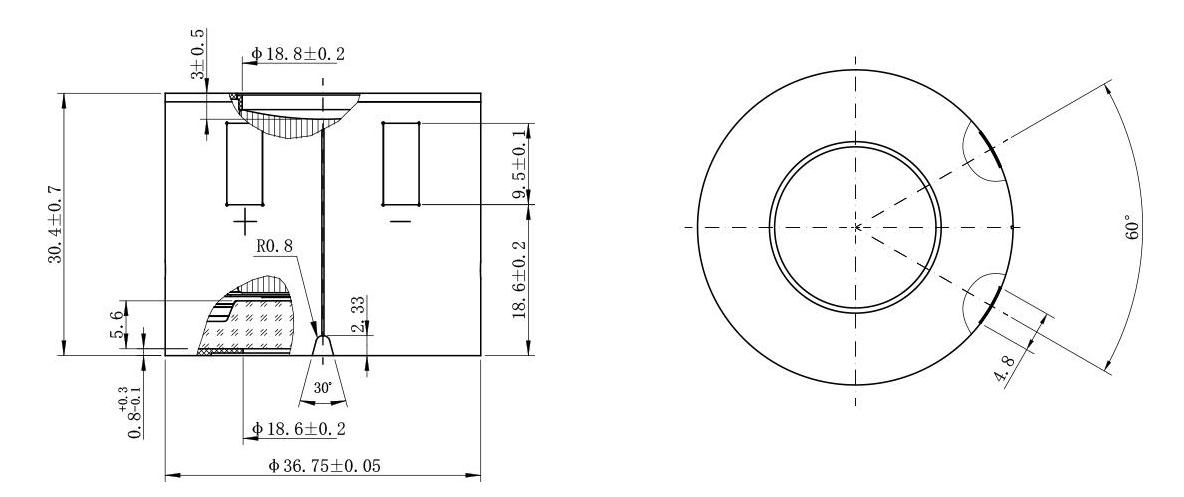

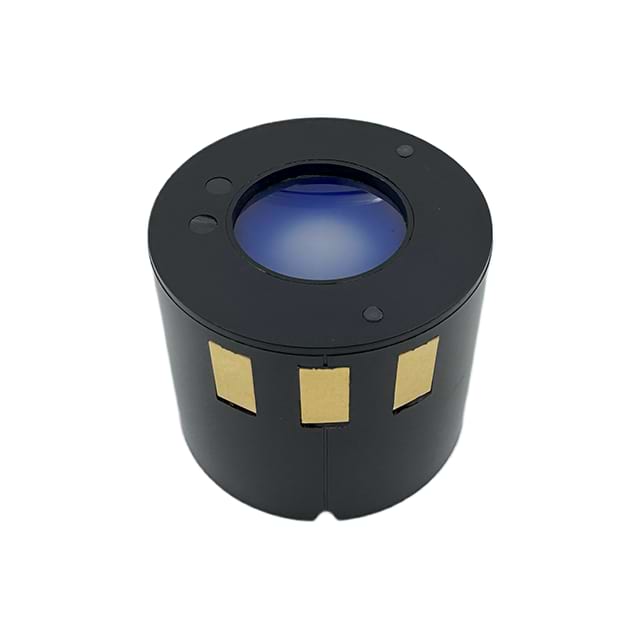

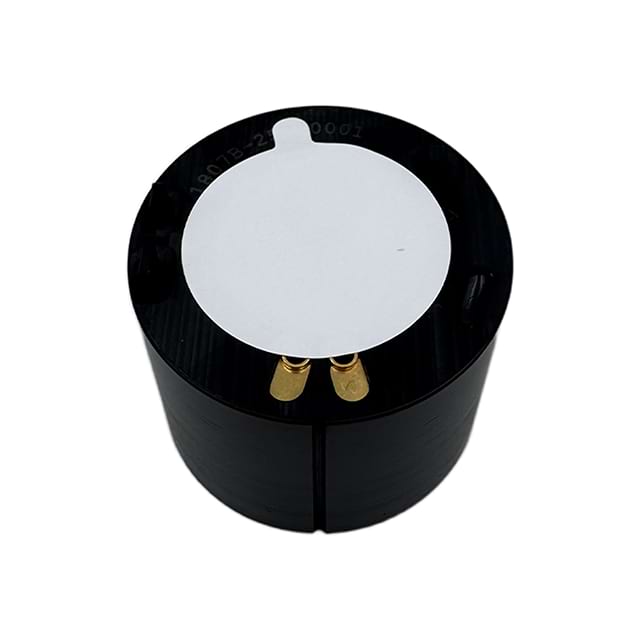

TOUCH TYPEIMAGE INTENSIFIER GEN2+

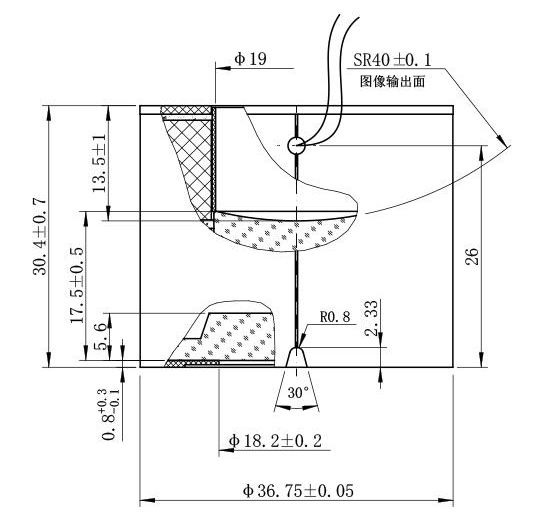

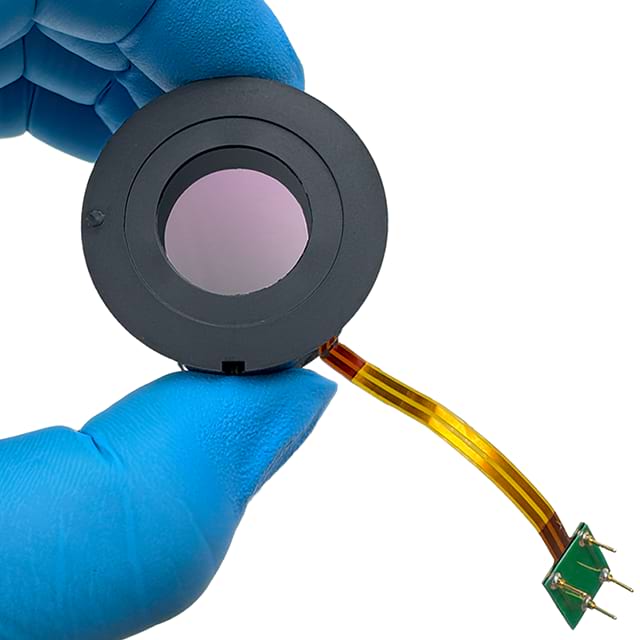

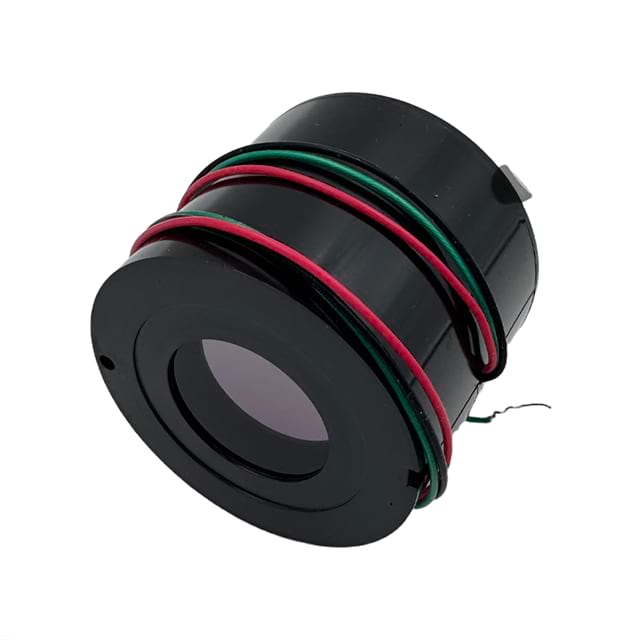

LEAD TYPEIMAGE INTENSIFIER GEN2+

DESCRIPTION

Q4-B image intensifier tube adopts Gen2+ technology with FOM≥1400, high resolution and low noise, offering clear green/white images (P43/P45) and flexible interfaces for reliable low-light performance. Its optimized design, long lifetime and controlled cost deliver outstanding price-performance, making Q4-B the preferred choice where both efficiency and economy matter.

The Q4-B offers a far more cost-effective solution than comparable imported tubes for military and police, security surveillance, outdoor equipment, and OEM manufacturers, making it the rational first-choice configuration for today’s mid- to high-end low-light night vision systems.

Compatibility:QVS7/QVS31/QVS14/QVS18

OPTIONS

P43(green phosphor)or P45 (white phosphor)

Product Assembly Demonstration
